It's all OK. The anchor mockup was just to see if the hardware I ordered would fit. Now that I understand what the bow actually looks like -- the anchor will be held just a little further away from the stem. I'm a little concerned about the weight (so high and far forward) of the anchor (9.8 lbs) and the roller assembly (8.5 lbs) -- but since I nearly always sail solo, it shouldn't be a problem.

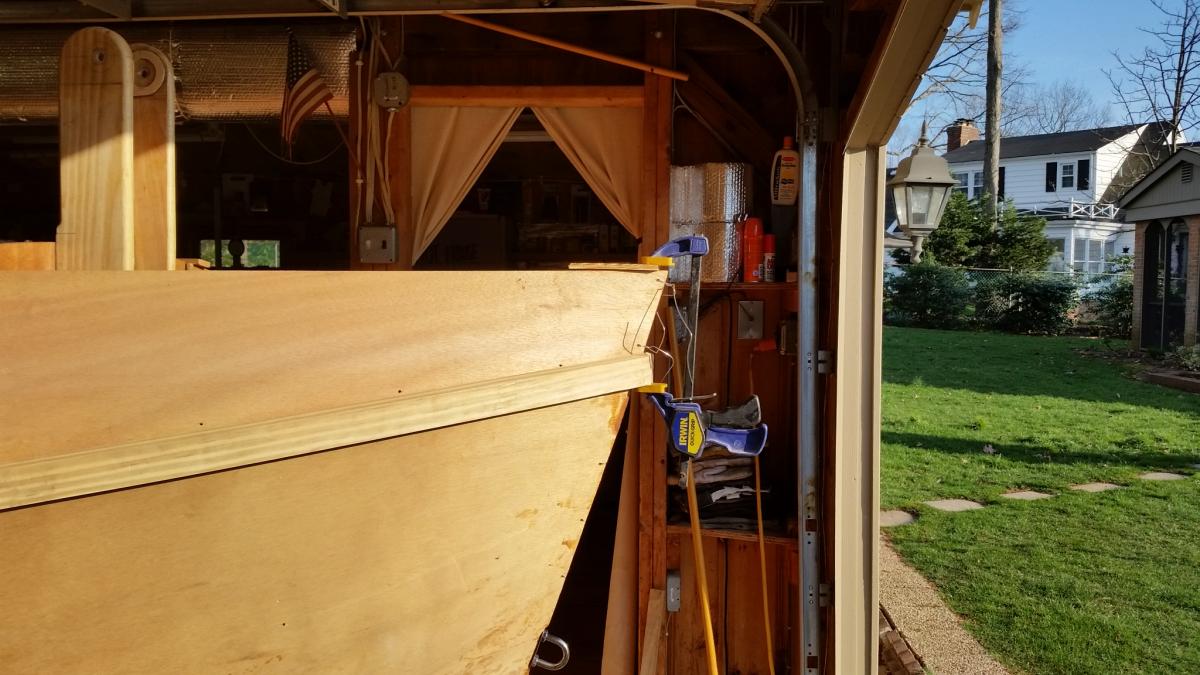

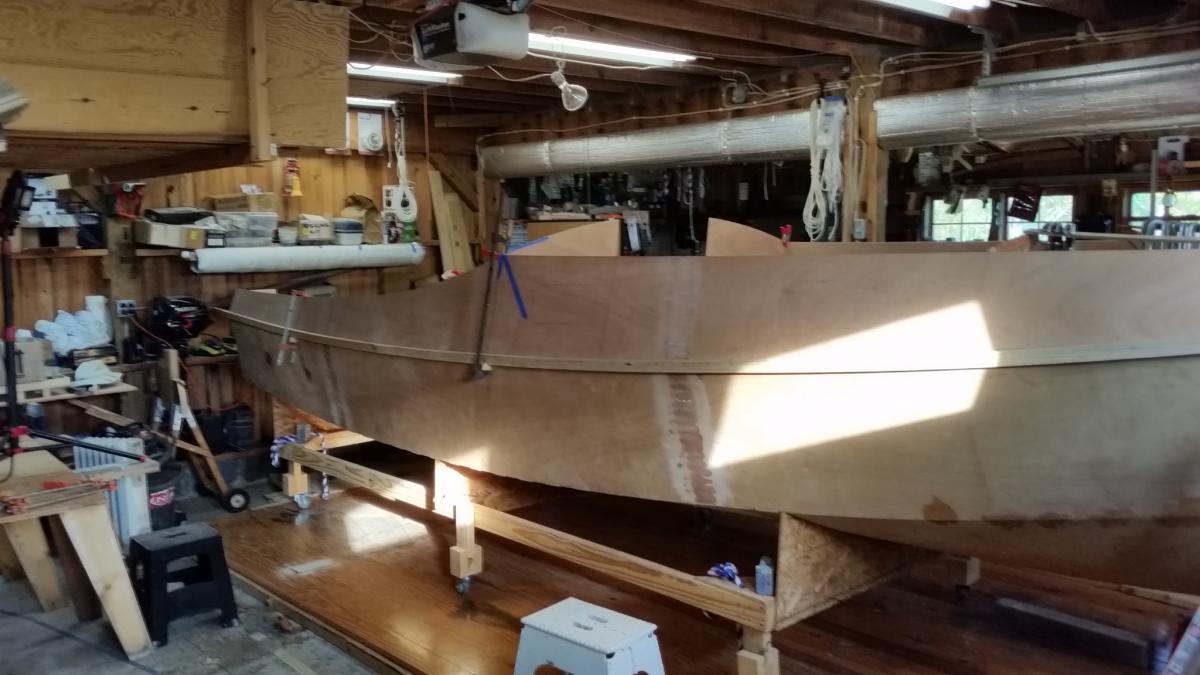

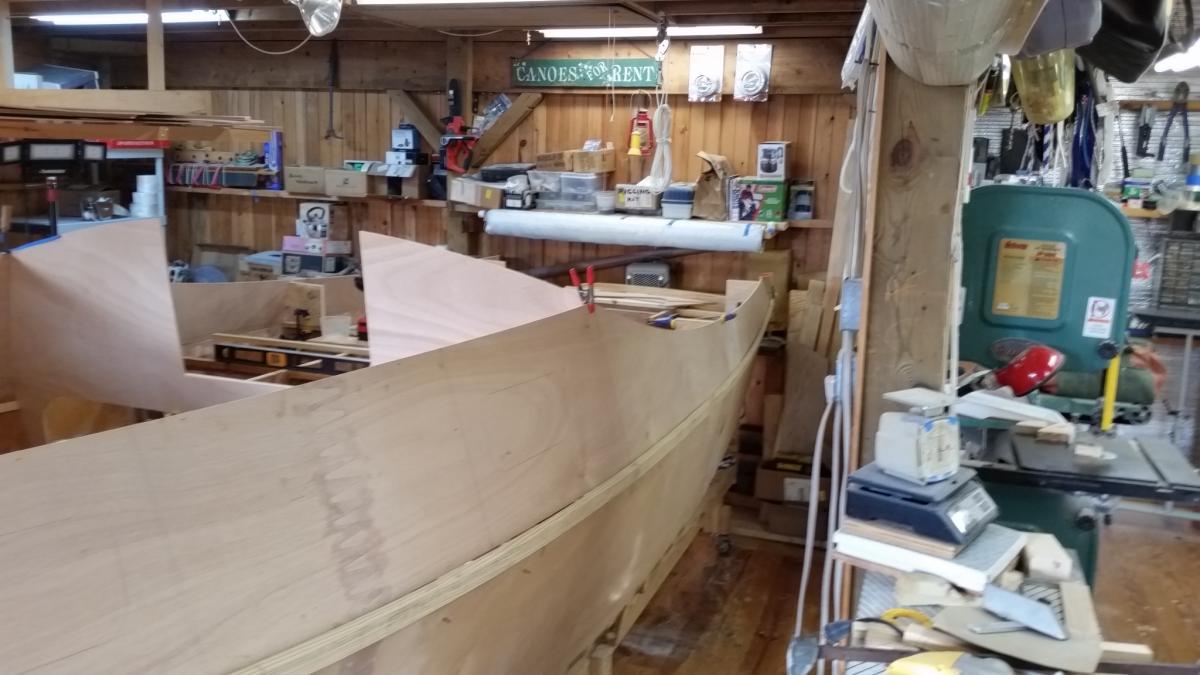

The sheer strakes are in place almost ready for spot welding. I'm really impressed with the accuracy of these very long pieces. They fit so nicely.

post-4915-0-94873700-1458863888_thumb.jpeg post-4915-0-72732700-1458863922_thumb.jpeg

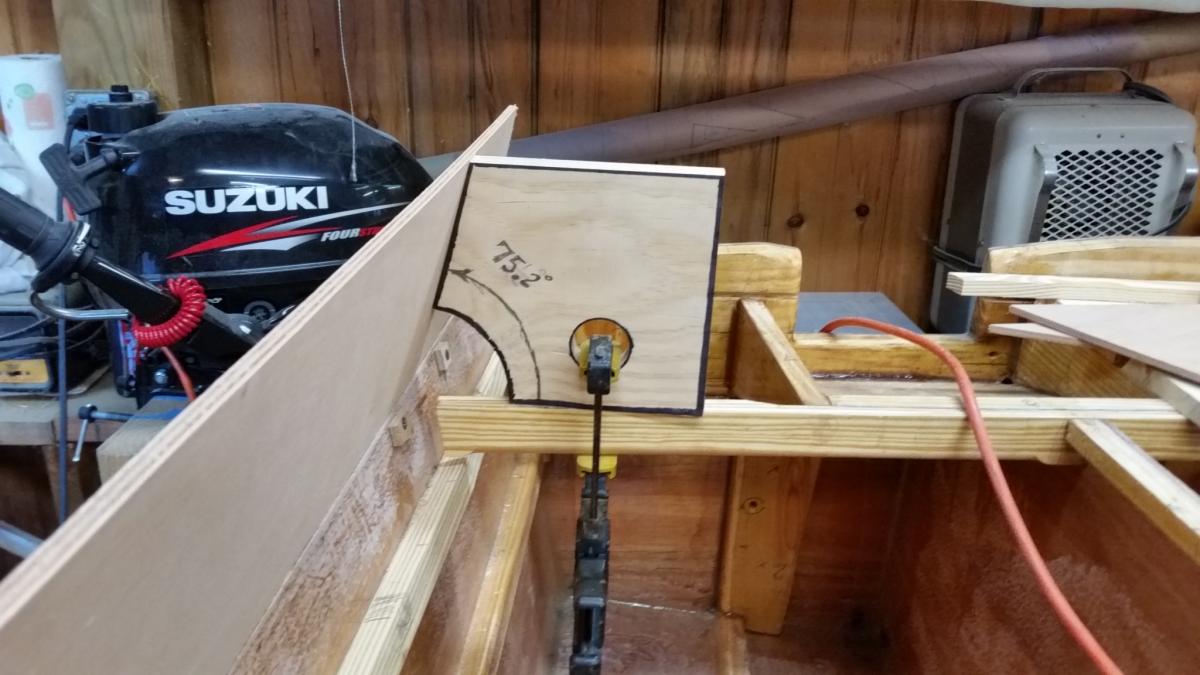

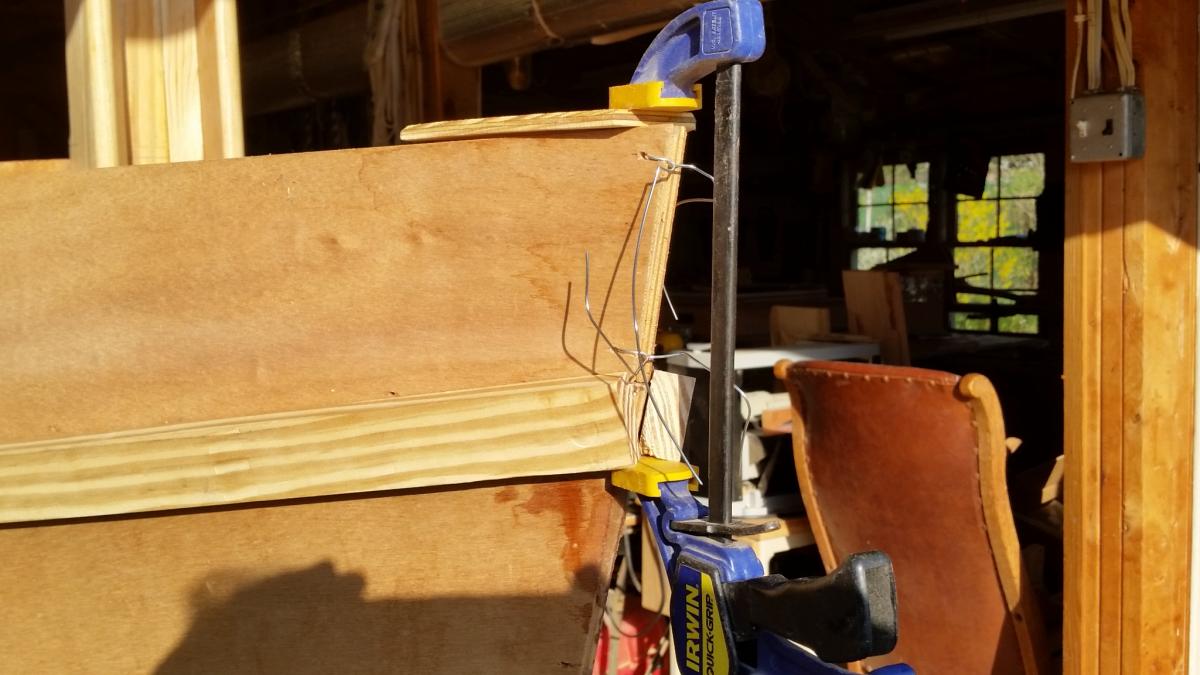

post-4915-0-92565600-1458907319_thumb.jpeg Getting the angle right.

post-4915-0-11675500-1458864091_thumb.jpeg post-4915-0-47152600-1458864125_thumb.jpeg

Next, before tac welding, I think I'll wire up the hanging knees.

Link to comment
Share on other sites

  • 3 weeks later...

Getting close to looking like a real boat. Not far from turnover.

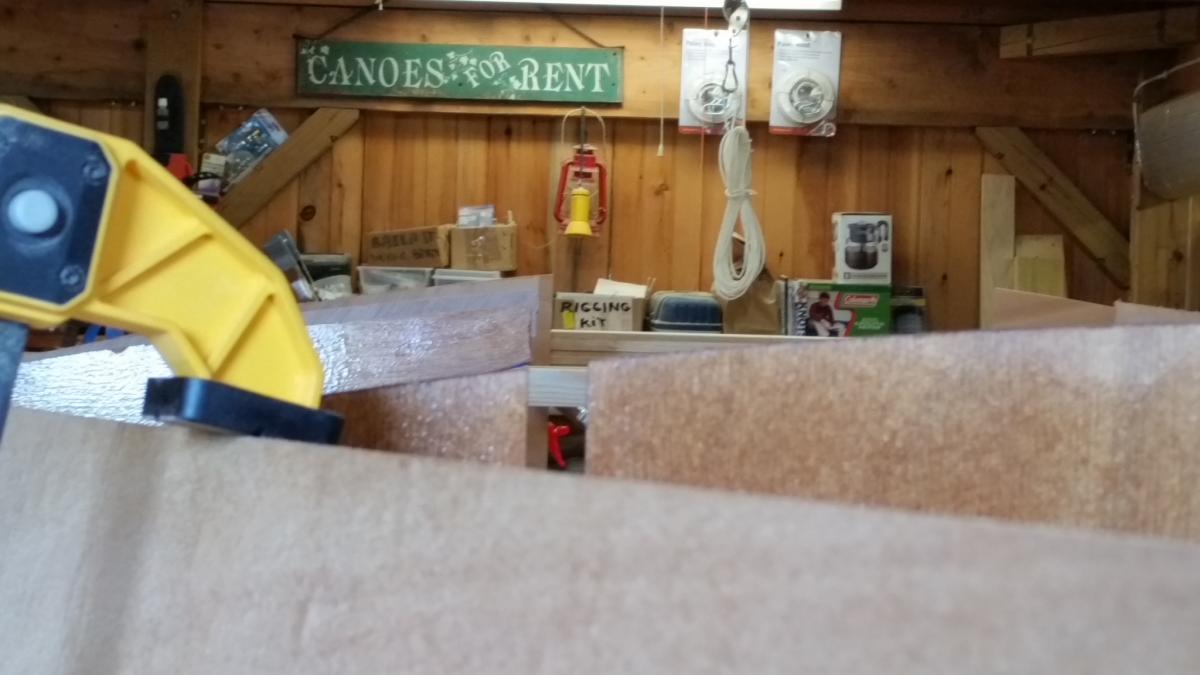

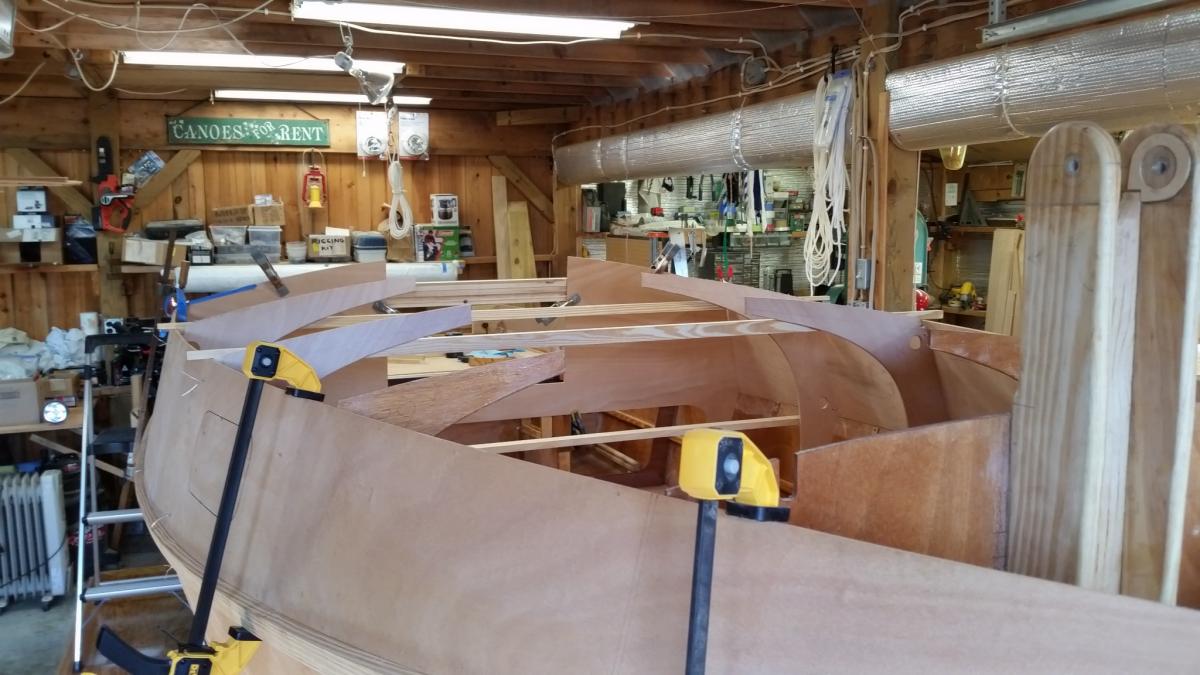

post-4915-0-52211300-1460498212_thumb.jpeg Blk 1, 2, fwd & aft knees, and Blk 3 -- all line up pretty well.

Looking aft port side then starboard side. Some trimming will be required, but not much to make true the cabin roof support and companionway framework.

post-4915-0-41627500-1460498275_thumb.jpeg post-4915-0-13266300-1460498310_thumb.jpeg

Next will be the deck beams and longitudinal rails supporting the cabin roof, companionway, and hatches.

Link to comment
Share on other sites

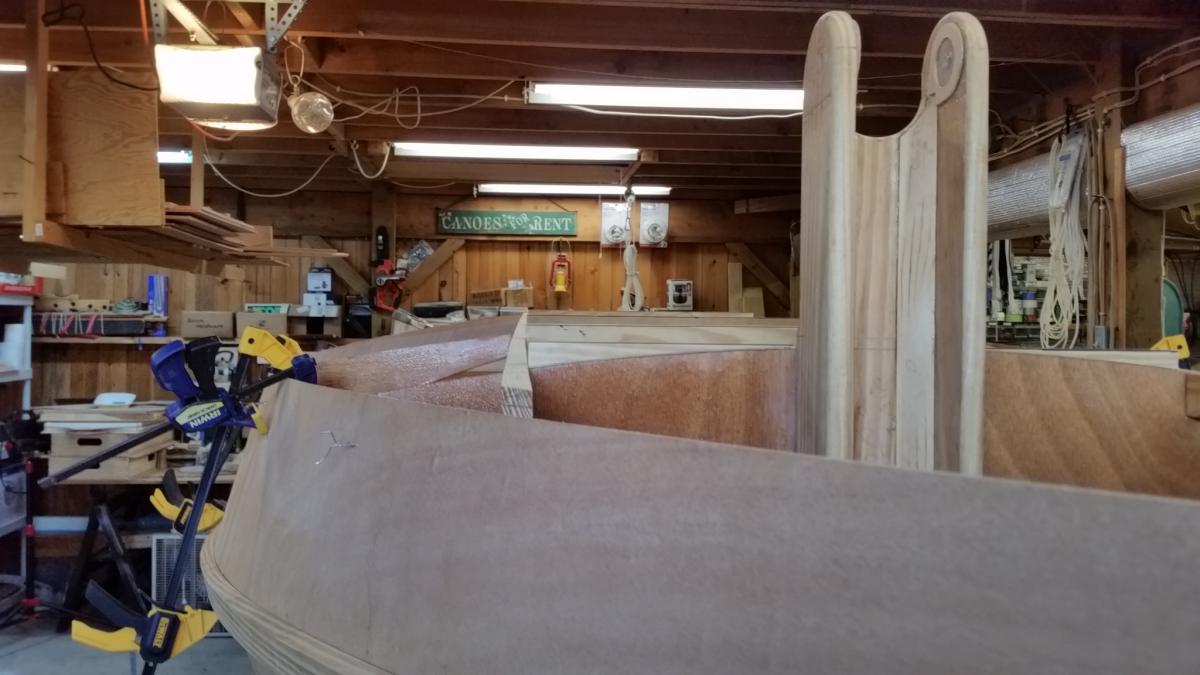

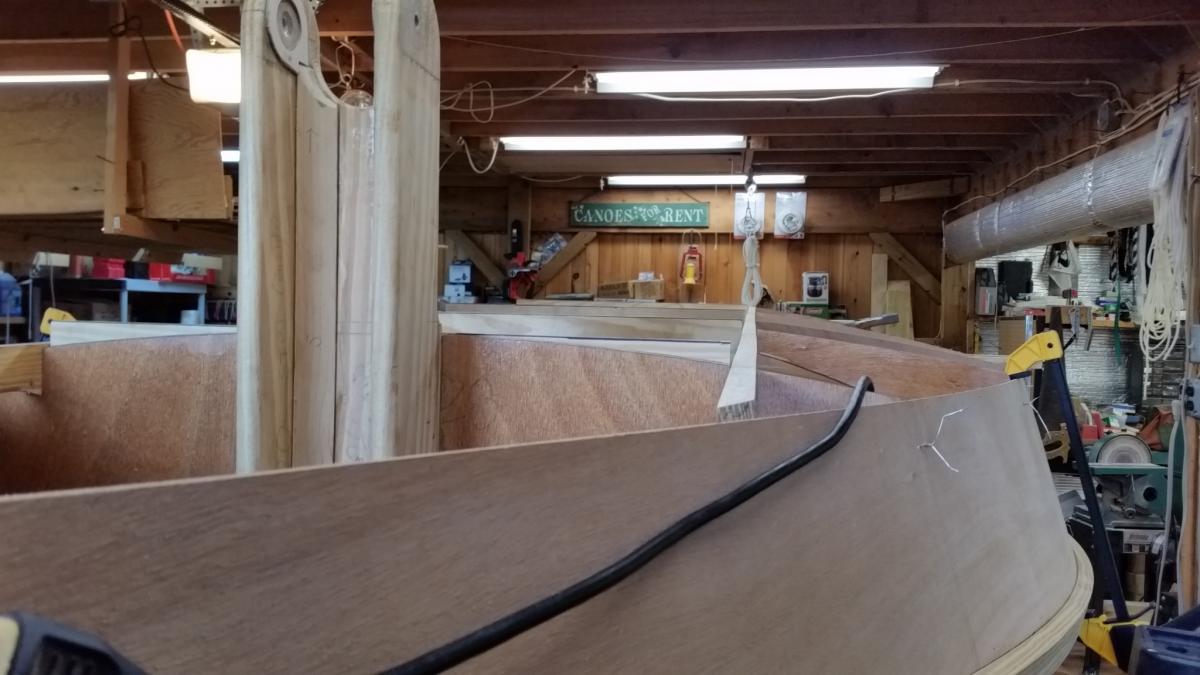

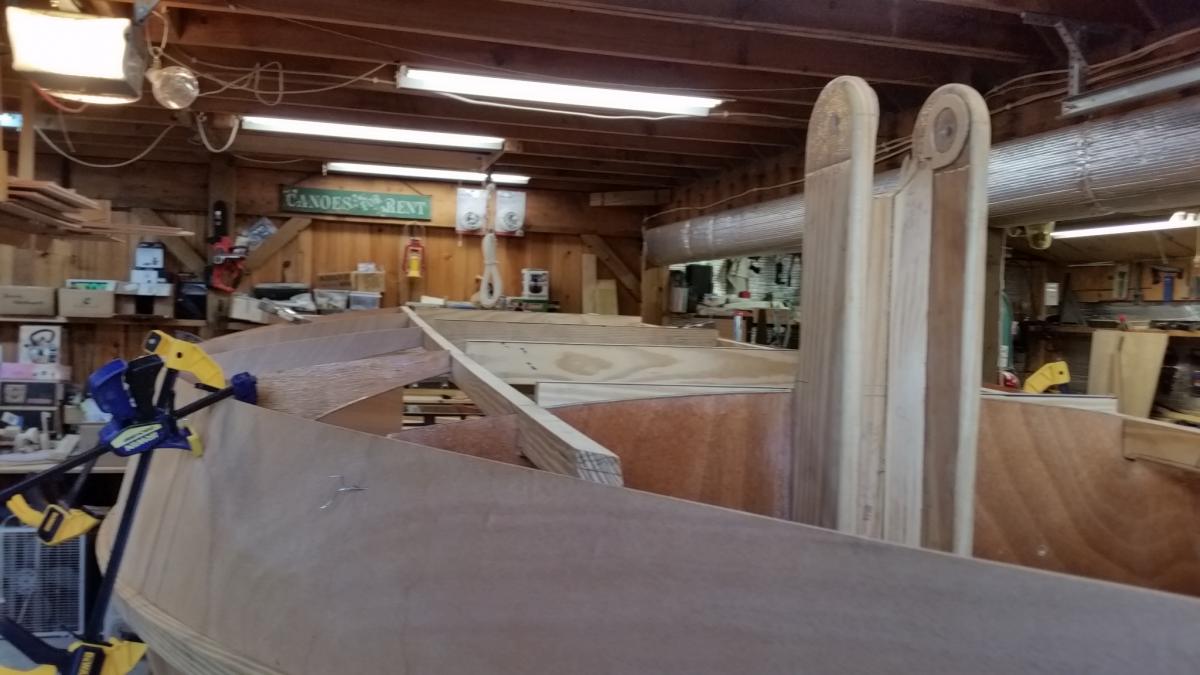

Today I made up the companionway frame from Blk 1 to Blk 3 with a pair of stringers and cross-beams at Blk 1 & 2, fwd knee, and aft knee. The spaces for the companionway hatch, its garage, and the fwd hinged hatch (on which the solar panel will be mounted) are nice and square.

post-4915-0-10660000-1460848942_thumb.jpeg post-4915-0-81009000-1460848976_thumb.jpeg

post-4915-0-52960500-1460849003_thumb.jpeg post-4915-0-01962300-1460849025_thumb.jpeg

All this was "dry-fitted." Next I'll disassemble it all, including the sheer strakes and prep all inboard surfaces with two Coates of epoxy. Then reassemble, and tac weld. When all is right: filleting, glassing, and pre-coating. Pretty soon I'll be putting on the cabin roof. This is fun.

Link to comment
Share on other sites

I thought maybe some of you would like to know the inspiration for my choice of "Chessie" for the name of CS20.3 #4. So, here it is (the C & O RR mascot):

post-4915-0-62744000-1460904798_thumb.jpeg post-4915-0-18794900-1460904830_thumb.jpeg

This afghan will keep me cozy-warm when crusing the Chesapeake Bay and other friendly waters.

Just as an aside, in 1966 myself and family (wife and children (2 mos, 2, 4, & 6 yrs)) traveled by rail from Boston to Oakland. Then by DC-6 to Kwajalien Island. We had two connecting rooms and the trip was thoroughly enjoyed by all. There were lots of volunteers to baby-sit the little one while the rest of us enjoyed the dinning car. We returned by rail and later made another transcontinental round trip thru Canada (CP RR) from Montreal to Vancover.

Link to comment
Share on other sites

Chessie...the ketch rigged cat. I like that. It seems to suggest a song to be sung extemporaneously, as is my wont, in the hammock accompanied by inadequately finger picked ukulele.

After I finish weeding and sowing the gardens, restitching the patio sun sail, fixing the cracked canoe rudder...man, I think I got a kayak to finish stitching up, too.

I think I need to lie in the hammock first, to build up some strength for all that. Jeeves, another cup of joe and the soprano, please. I'm nice to my butler. :)

Ch-ch-ch-Chessie...

Link to comment
Share on other sites

After a two-day 60th Reunion with "brother rats" from the Virginia Military Institute, Class of 1956, in Lexngton, Virginia, I'm back to having fun and progress with "Chessie."

post-4915-0-73023000-1461425424_thumb.jpeg The V. M. I. "Color Guard" and Corps of Cadets at parade honoring the returning alumni.

After dry-fitting sheer strakes, cabin knees, and the framework for the hatches and companionway -- notes were made and all was disassembled. A list was made of at least a dozen things to be done before reassembly and "tac welding" everything. Such as epoxying all "inside" surfaces, etc.

post-4915-0-53999100-1461426117_thumb.jpeg post-4915-0-91813600-1461426157_thumb.jpeg

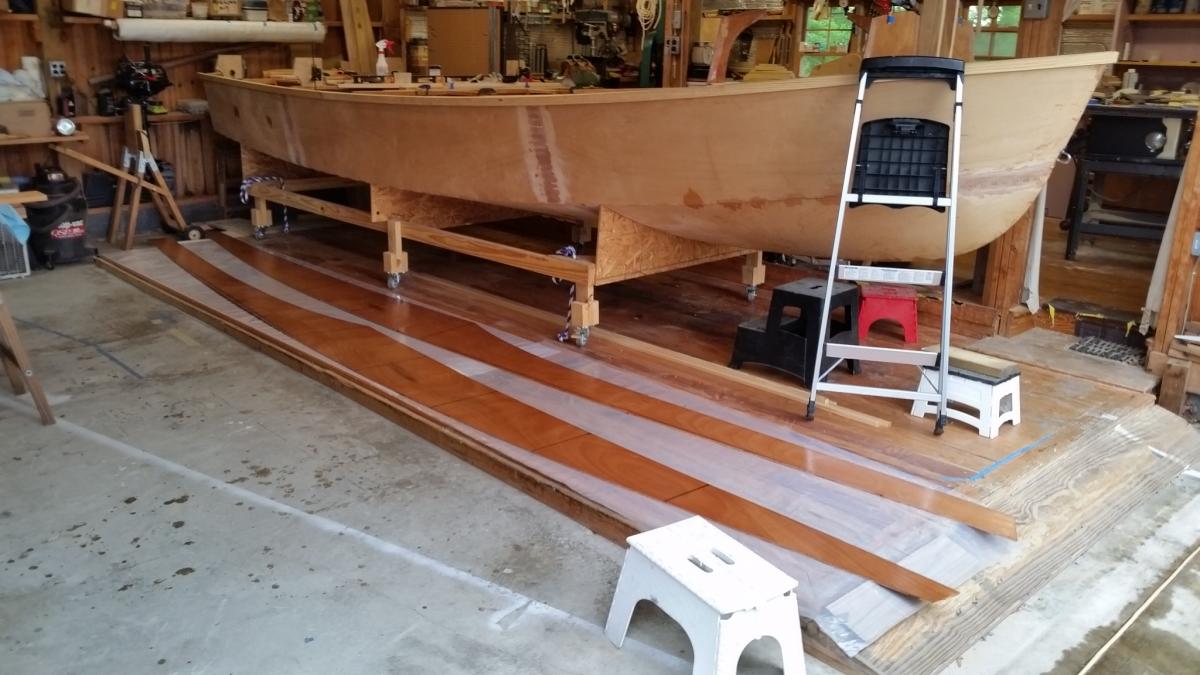

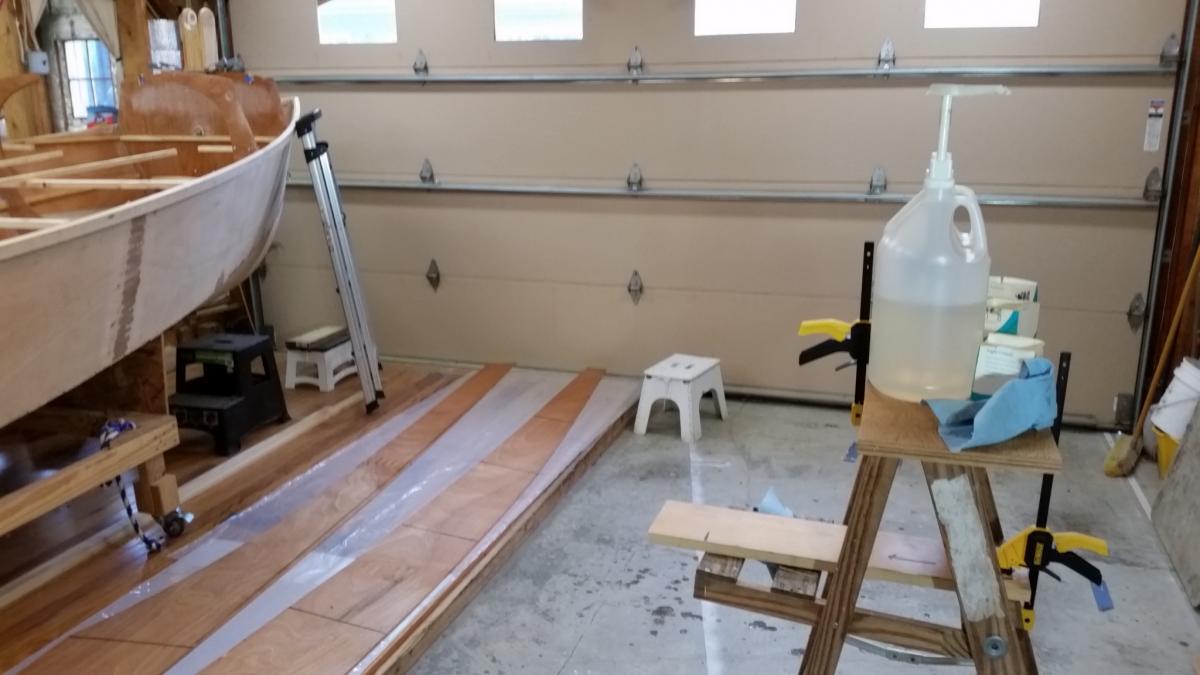

Because the work had to be done on the floor, the hardest job was applying epoxy to the 20'+ sheer strakes. For those who haven't done this yet: Eight squirts each of epoxy & fixer proved to be just right for the 1st coat (applied with a 4.5" roller) covering one side of both strakes AND one side of all four cabin knees. I thought it would take more. Next I'll measure (and post) a fairly accurate square footage of all that was covered.

The last epoxy was laid on at 10:45 am. If I can get a "thin-film" set by this evening, I'll apply the 2nd and last coat today. That should end the back & knee-breaking floor work.

Link to comment
Share on other sites

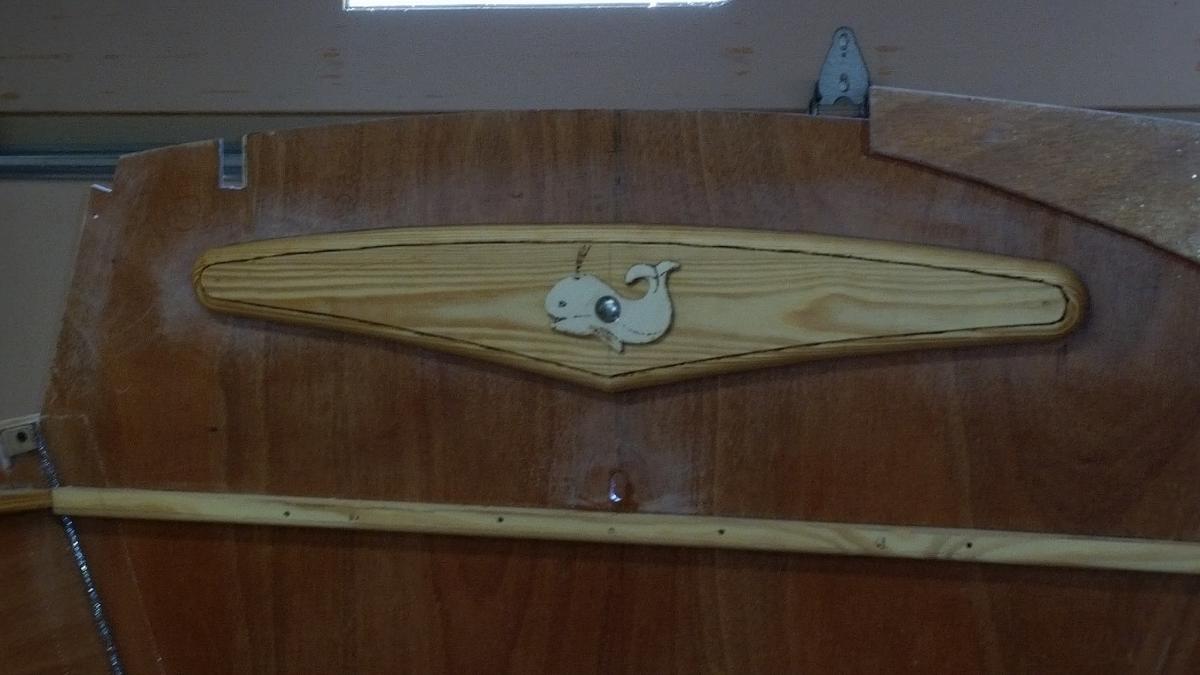

Getting close to attaching the sheer strakes and being able to actually see in real 3-d what the cabin space will look and feel like. To cheer things up I fancied up the doubler I installed to stiffen Blk #1. Probably isn't necessary, but it gives me a little more feeling that the tabernacle can't be made to move.

"Chessie" has a small wale as her mascot -- "Chester" -- to keep her safe from the demons of the deep.

post-4915-0-47245500-1462220891_thumb.jpeg post-4915-0-36203200-1462220919_thumb.jpeg

Although I made space for a battery box in the locker between Blks 1 & 2, I'm going to have the battery in the space right on the keel just forward of the shelf under the bridge deck. Its top cover will be the first (of one or two) steps up to the the cockpit. Its weight (probably about 85 lbs) will be useful as ballast and centrally located. If I ever feel the need for a second battery, I'll use the battery base already made between Blks 1 & 2.
