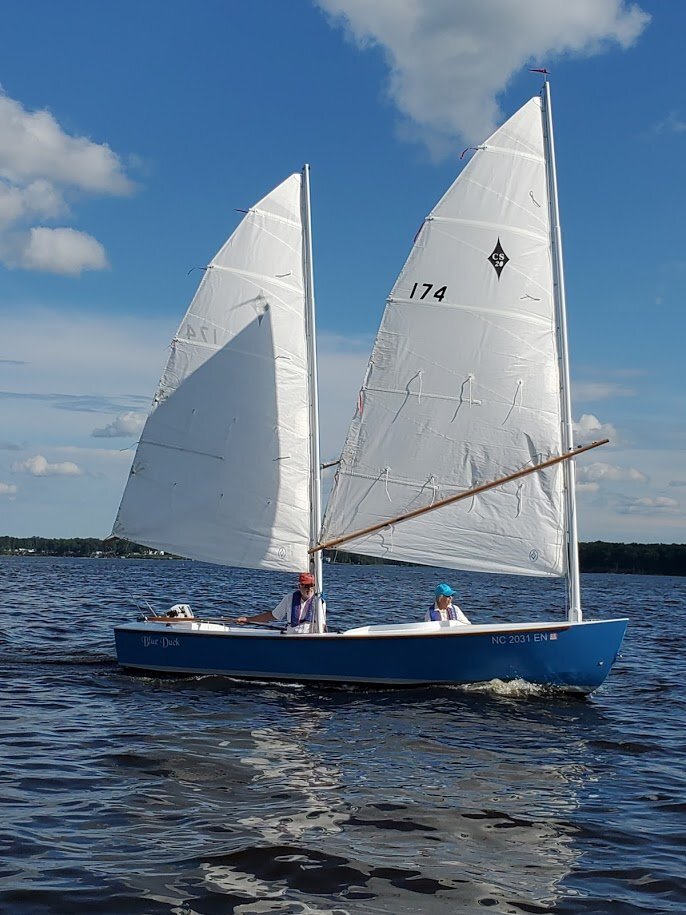

  1. By the way #174 has a name: Blue Duck. My boats have been named after birds, and this one is blue, so ... Applying graphics is on the to-do list. More photos to follow. In case you were wondering, and even if you were not, there really is a blue duck. If you search the web for images you can see a blue drake of the species native to New Zealand. The Maori name is whio and its picture is on the NZ $10 bill. There was also an outlaw of the Old West known as Blue Duck who hung out with Belle Starr, but the boat isn’t named after him.

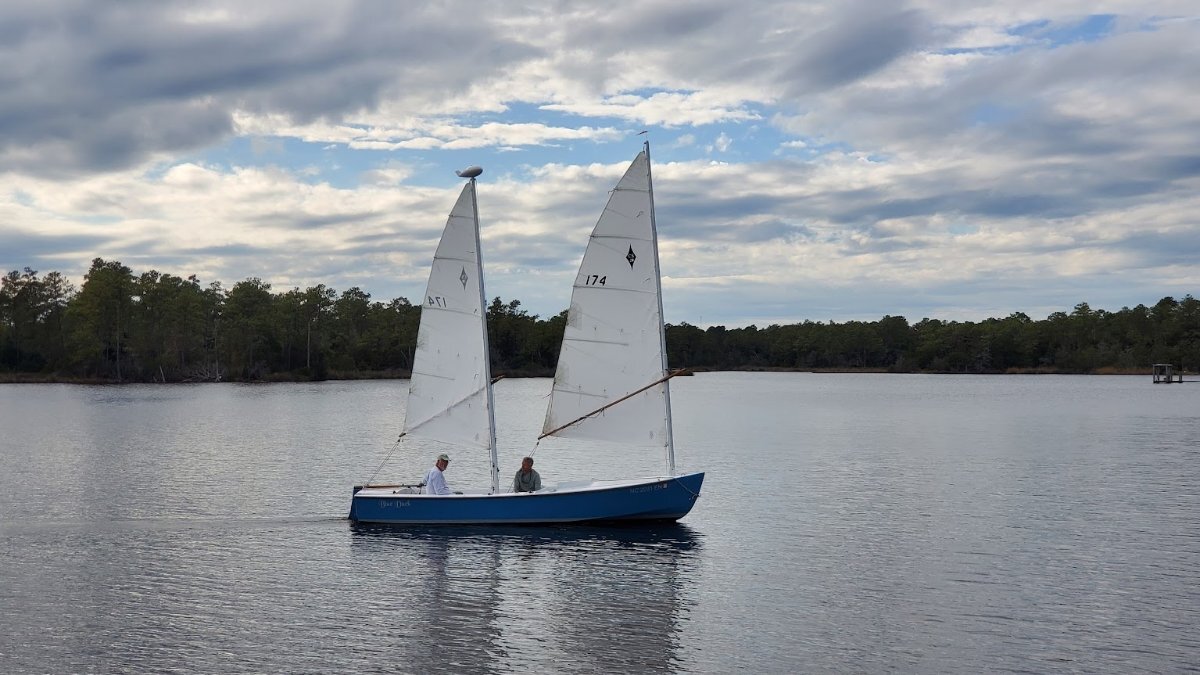

  2. Finally launched the boat! I was hoping to get it the water in October, so I could say it was one year since unfolding, but I didn't make that. At least I can say it was in 2019. Rigging was unfinished when I took it to the Messabout so I didn't sail there, but I did get to do a launch test. Alan took photos and a video of the event - the roller bunks worked great. I have since added a couple of centerline rollers. Back to the garage for rigging and some final details, and today it was calm and warm so we launched this afternoon. Things turned out as I had hoped with only a few glitches, which is why we do beta tests. I have a to-do list: finish rigging, fix sail slides to hoist and drop easily, put on the rubrails, etc., etc., etc. Still learning about the Torqueedo but it made an excellent first impression.
  3. Red is downhaul, rigged 2:1 under the deck. Easy to change to 3:1 if I want. Black is halyard. Green is snotter.
  4. I decided to route lines to the mainmast under the deck. Before I glued down the deck, I mounted turning blocks under the bow pieces and used them to align pilot holes in the deck and locate holes in the bulkhead. I used a piece of cord to where they were headed and lined up a piece of PEX pipe to go through the bulkhead and put fairleads on the deck beams. I put screws through the pilot holes to keep drips out of the blocks below, then when epoxy and painting work was complete broke them out and drilled holes for Racelite through-deck fairleads. Clamcleat makes a cleat with a roller fairlead on the bottom for the line to enter from below. It is a CL230 – looks just like the CL211. I made a little Starboard molding for the line to go over (under?) just before going through the deck. The two cleats shown are for the downhaul and halyard. I put the cleat for the snotter closer to the helm. I think this is about equal in turns and friction to running lines above the deck. A little more trouble to run the lines. I had considered running the lines through lengths of 1/2-inch PEX but it might become mud dauber habitat.
  5. I decided to add a centerboard gasket. I have had them on boats before and they probably make better sailors go faster but it also keeps crud out of the centerboard trunk. Sailing around here when (not if) I stick the board in the mud maybe it will act like a mud squeegee. When the boat was on its side I installed the bailer and a gasket. I got some material from APS but unfortunately they don’t sell it any more. It is coated fabric but the ones I have had in the past are just sailcloth. I used 1/8 x 1/2-in. aluminum strips to secure it and lots of 4200. It probably is a vulnerable spot for water intrusion so I will keep an eye on it.
  6. Update: I haven’t reported on progress in a while but I have made some. I managed to get the boat almost completed to go to the Messabout, but I couldn’t get the mast rigging done before Friday. So, no sailing but we did do a launch test – more about that later. I don’t have many new photos to share since most of the work since my last batch was sanding, priming and painting. I have made a few custom additions so I will get pics together about those. First, or maybe last, I diverted effort to refurbishing the trailer I bought from a CraigsList ad. I replaced bearings and seals, tires, lights, winch parts, roller bunks, etc. You know the story. I was considering the great keel roller design by Graham and Pete McCrary but I also had decided against a keel. At least initially – I may change my mind and add it later. So rather than adding a few rollers and recovering the bunks I bought keel roller bunks. The bunks on my trailer are directly under and align with the longitudinal bulkheads so I wasn’t too worried about hull deflection. I selected galvanized sets made in the USA by Dutton-Lainson and got mine on sale from etrailer.com. Since my bunk boards are 8 feet long I got 2 sets of 4-foot roller bunks. We did a launch test at the Messabout and Alan crouched under the boat and took a video – it is in his Messabout photo album (https://photos.app.goo.gl/orS7YxLEPGa3Wkd2A) This long-winded explanation goes with that video, but the bottom line is that the boat rolled off without a push (so I need to be careful about unhooking at a ramp). There are 60 rollers! I will add a couple of centerline rollers and tweak the bunks but I am pleased with the results.
  7. For what it's worth: I made long tapered ramps out of Starboard, bedded all with 3M 4200, and I also used Rustoleum products. What I wish I had done differently is to make an attractive taper all the way around the mast to conceal the steps between sections. I have admired masts where folks did that. Maybe that is a revision to try when repainting is needed.
  8. I have been thinking about this too and have found a couple of additional links. Some of the bulbous devices are really ugly. Flying Scot has a float that fits over the head of the mainsail (https://flyingscot.com/product/mainsail-flotation-mast-flotation-top-of-mast-flotation/); I never saw one in use, thought it was ugly, and wondered about its effect on sail shape. Maybe there are some other ones like it. Seems like you might be able to make something similar with some closed-cell foam and sailcloth. There are a couple of inflatable masthead floats made by Crewsaver: https://crewsaver.com/au/search-results/?searchTerm=mast+head. I am not clear on how these attach. Another self-inflating device that may be an option: https://www.throwraft.com/ I had the idea that this could be rigged to hoist on a spare halyard (think pigstick) and might work. At least it would be significant buoyancy. The fallback would be that it meets USCG requirements for a throwable flotation device and would be usable for that. But once one of these is used, then what? Lower it and replace the CO2 cylinder? Seems like if you can capsize once you can do it again (my personal best is 14 consecutive capsizes in a Laser). A more 'durable' or permanent device would address that but windage and aesthetics enter my thinking. The B&B option as it evolves is appealing. Maybe Graham and Alan can figure out how to make it add power, like a topgallant ...
  9. Last year: just starting build. Flat panels on base, surge came in garage. This year I got ready again. Making progress, but it is hard to sand the boat like that. The good news is that the wind has shifted and the threat of surge has passed with no water in the garage this year. No regrets for prep though. Wisdom from a seaman: The time for taking all measures for a ship’s safety is while still able to do so. Nothing is more dangerous than for a seaman to be grudging in taking precautions lest they turn out to have been unnecessary. Safety at sea for a thousand years has depended on exactly the opposite philosophy. --- Admiral Chester W. Nimitz Alan and Graham -- I hope you have had the same result!
  10. Seems like we just did this. Last year it was a timeout that lasted weeks by the time it was over: prep, the storm, cleanup, reset shop, back to work,... Plus time mixed in for dealing with other storm effects, checking on family and friends, occasional rest periods, and other stuff. So finishing my boat by this year's Messabout may not happen. Dang. I am about 99% as ready as I will be. Now we wait. I think I will have an adult beverage ...
  11. It is a great photo. Looking forward to the day mine is doing that! Three full battens? They came with the boat or your choice, and any review comments? Post more photos. Very inspirational for the sanding hours...
  12. Great stuff, Pete. I am in the process of refurbishing a trailer for my CS20 Mk1 and your design ideas and photos are very timely. I was thinking about some kind of keel "trough" and yours looks like I could make it work well on my trailer. I also have the advantage (?) of being in build mode at the stage of glassing the hull and installing the keel, so I think I will build my trough while the boat is upside down and I can adjust the roller positions and test the fit pretty easily. What will be at the entry of the trough? A 5" roller at the end or will you have a wider or different type of roller? About FG and epoxy, my thinking is 5/4 PT pine screwed and glued together will be fine as is. But I will be very interested in other suggestions posted. Thanks for posting, and for the photos.
  13. I tried using fillable caulking tubes to apply thickened epoxy and I wondered if others on the forum had experience with them. I decided to compare them to the plastic bag approach when gluing the deck on my boat since there were many linear feet of glue bead to lay down. I have used cartridge system epoxies like West System Six10 or Pettit FlexPoxy for repairs, small jobs, and once in part of a building project (a glued lapstrake boat). The mixing nozzle is cool technology and the result is a perfect non-sagging mix. But there isn’t very much in the tube and it is an expensive alternative. Thickened epoxy in a plastic bag works very well. I had the idea that a caulking gun might work better for me on vertical surfaces so I ordered some from Amazon.com. My experience so far: - I was working in hot weather so I had to have everything ready to go and then worked very quickly. Not quite frantic, but I had a vision of having a solid warm cylinder when the epoxy kicked. - I cut the nozzle to 1/4-inch so I could use a dowel to push the plug back out - It worked well. I think it is no better than the plastic bag method for horizontal surfaces but I did a better job on vertical. I was pleased with how well and quickly I could lay down a bead on a carlin then spread it with a small spreader of brush. - So far I have gotten 4 uses out of one tube and it is still usable. Some epoxy remains at the nozzle end that I couldn’t get out but it still works; if it plugs up the nozzle I could drill the hardened epoxy with a long bit. The hassle was the plug – I was able to push it back out with a dowel but it is getting harder. Some say you can blow it out with compressed air but I didn’t try that (seems like an opportunity to make a mess) - I think it would work well for delivering thickened epoxy into a corner to make a fillet but I have not tried it yet. I could not find much about use in a web search, YouTube, etc and none on boatbuilding. How about this group?
  14. And that is all the pieces from the kit! Everything that came from the CNC machine (except centerboard and rudder parts) is now assembled. It felt like another milestone passed. Almost done, right? ... I hear snickering ... Checking inventory of mask filters because I know I will be spending much time with sanders and epoxy coating.
  15. Deck and coaming installation
×
×
