Bud_Wilson Posted October 14, 2005 Posted October 14, 2005 Hello All. Has anybody got any hot tips on a boom crutch? I am going to build something to lay my mast and boom on. I thought I would try to build something that looked a little better than the fold up plastic saw horse I am using now. Y'ALL COME Cap'N Bud. Quote
Dave R1 Posted October 14, 2005 Posted October 14, 2005 Bud, I did a wooden sawhorse sort of thing that sits on the seats. I made it from lumber from the building dolly when I was finished with it. I milled all the 2x lumber down and it looks pretty nice. Is that something you'd be interested in? Quote

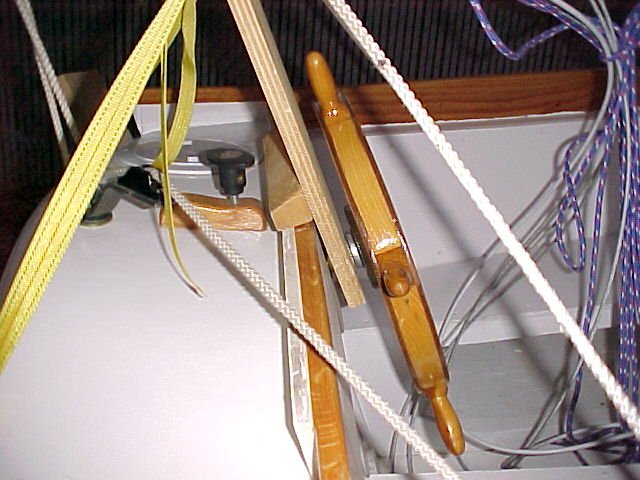

Tony Pratt Posted October 14, 2005 Posted October 14, 2005 Hellow Bud, I made my boom crutch out of three quarter inch piece of plywood it is 1 foot wide by 3 feet tall with a half circle cut out of the bottom side of the plywood and it sits behind the gap on the steering and lazeret. The plywood sits ontop of the steering wheel shaft with the half circle cut out so it doesnt slide from side to side. the top is cut out like a U to hold the mast when its down. Ill post a pic as soon as possible. Quote

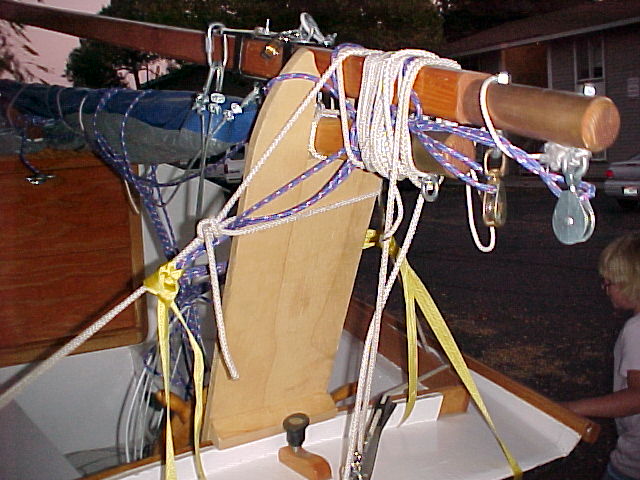

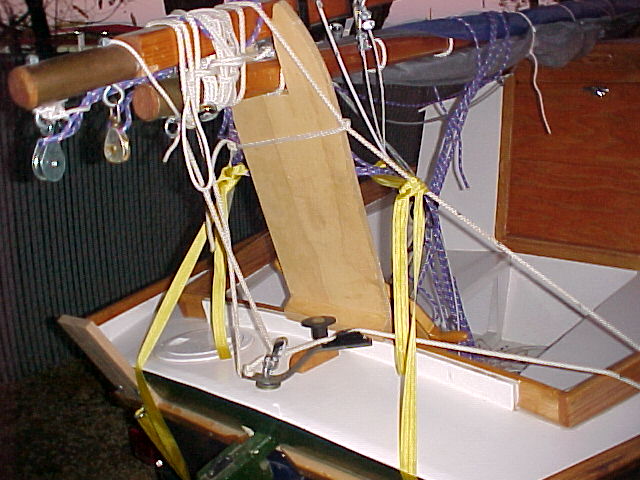

Tony Pratt Posted October 22, 2005 Posted October 22, 2005 here is my boom crutch, it's really easy to make. Quote
Craig Posted October 23, 2005 Posted October 23, 2005 Look in here Bud. Mine work well and stores in the truck whill I'm sailing. A gallows is a hoped for mod for this winter http://members.cox.net/bb343/index Quote
Bud_Wilson Posted October 23, 2005 Author Posted October 23, 2005 Thanks guys for the ideas. Craig plese e-mail me your U.S postal address (slow mail) portnickajack213@hotmail.com Y'ALL COME Cap'N Bud. Quote
waynemunro Posted October 24, 2005 Posted October 24, 2005 Hi Bud, Having not had a boom crutch last year, I recently whipped on eup from some scrap treated pine I had floating around. mine open witha scossor type action, with a strap across the bottom to limit opening, and it is small enough to fit into the locker under the seat. Quote
kydocfrog Posted October 24, 2005 Posted October 24, 2005 That's neat. Both of these are neat. Gotta do some thinking on this. Thanks guys. DocA Quote
capt jake Posted October 24, 2005 Posted October 24, 2005 I don't think that I have any pictures of my boom crutch but it is very simple. A solid piece of Mahogany with a small cleat on the base. The cleat slips under the taffrail. I tie it in place with webbing. Small enough that it stowes easily. found it. Quote
