Apteryx Posted August 22, 2009 Report Share Posted August 22, 2009 Wow, that looks nice, John. I would say way better than my centerboard, but I've taken to disowning it. Anybody asks what that funny board-like thing in the corner of the garage, I just explain the previous resident here had abysmal boat building skills and in a fit of despondency left his miserable centerboard in the garage when he left. I'll throw it out, I explain, as soon as I get a moment. Router jigs, that's the answer, I'm convinced of it. Hmmm... Found more smileys, here's a nice one for those of us often making targets out of our own feet... :microwave: Quote Link to comment Share on other sites More sharing options...

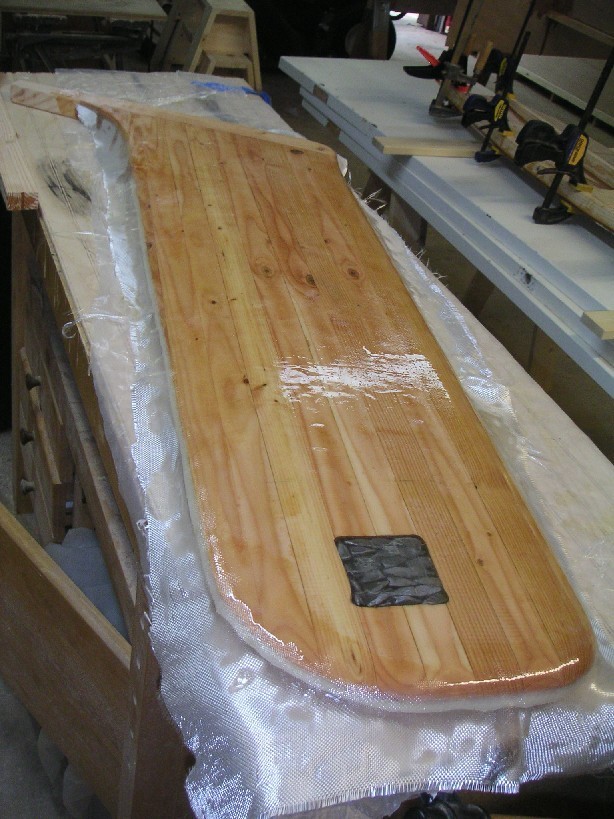

John Turpin Posted August 26, 2009 Author Report Share Posted August 26, 2009 A little song, A little dance, A little centerboard lead, perchance? I bought a big box of lead fishing sinkers and smashed them flat. I then routed out a 3" X 3" pocket in the centerboard's foot. A little epoxy will hold it is place until it's all wrapped in cloth. I didn't weigh it, but it's probably between 2 and 3 pounds of lead. Note: Someone asked me why I chose lead sinkers instead of poured lead. Well, it was kind of the process of elimination. Of course, melting and forming a lead disc/block would have been the best, but I don't have a way to melt lead. So, I planned to use lead shot. But, my local sporting goods store no longer carries reloading supplies. I looked at a big container of BBs, but reading the label, I discovered that BBs are made of steel. The fishing aisle provided me with a huge selection of lead sinkers. Presto! Quote Link to comment Share on other sites More sharing options...

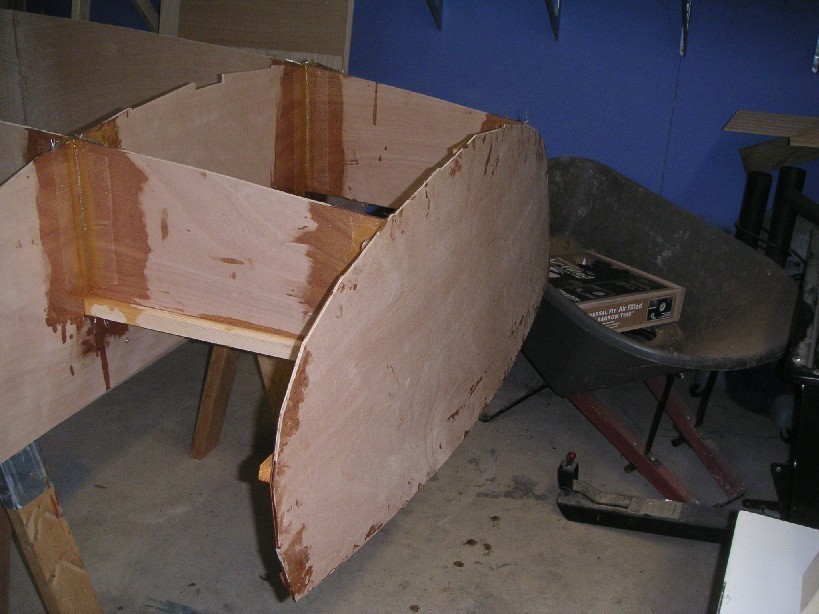

John Turpin Posted August 29, 2009 Author Report Share Posted August 29, 2009 It . . . is . . . alive! Now tell me that doesn't look like a boat. You can't, can you? Quote Link to comment Share on other sites More sharing options...
Howard Posted August 29, 2009 Report Share Posted August 29, 2009 So, I'm ditching the NACA foil idea and going back to the plan design. I'm back on the Plantation. Enough experimenting for this week. I'm not familiar with the plan design. If not a NACA foil, what is it? Quote Link to comment Share on other sites More sharing options...
Travis Votaw Posted August 29, 2009 Report Share Posted August 29, 2009 John, did you get the stem repaired? Quote Link to comment Share on other sites More sharing options...
John Turpin Posted August 29, 2009 Author Report Share Posted August 29, 2009 John, did you get the stem repaired? It looks good. The epoxy went completely into the crack and the vice and clamps kept it tight all night. Some 10oz. tape will go on for extra strength. Quote Link to comment Share on other sites More sharing options...
John Turpin Posted August 29, 2009 Author Report Share Posted August 29, 2009 I'm not familiar with the plan design. If not a NACA foil, what is it? I'm not sure. The leading edge looks NACA"ish" and so does the trailing edge, but the center of the board is flat. In a true NACA foil, that arc doesn't really flatten out. I'm no fluid engineer, but it looks pretty efficient to me. Quote Link to comment Share on other sites More sharing options...
Apteryx Posted August 30, 2009 Report Share Posted August 30, 2009 John, that sure does look like a boat, and what a beauty! With that ruler flat bottom she will plane like a WITCH!! Extending the deckhouse all the way aft was a stroke of genius, although that completely curved deck might get slippery. No, wait, I see the stairsteps you've engineered. Brilliant. :drinking: Seriously, congrats on the progress! Someday I'll catch up. Slow but steady, that's me, maybe a little too much emphasis on the 'slow' part, but what wonders I'm learning. Wood is so cool. Lapstrakes, that looks cool, too. :-D Quote Link to comment Share on other sites More sharing options...
Richard Whitney CS#70 Posted August 30, 2009 Report Share Posted August 30, 2009 Good to see things coming along John. I took a leap of faith and started cutting strakes today. Quote Link to comment Share on other sites More sharing options...
Howard Posted August 30, 2009 Report Share Posted August 30, 2009 I'm not familiar with the plan design. If not a NACA foil, what is it? I'm not sure. The leading edge looks NACA"ish" and so does the trailing edge, but the center of the board is flat. In a true NACA foil, that arc doesn't really flatten out. I'm no fluid engineer, but it looks pretty efficient to me. I'm no engineer either, but thanks to PAR and others, I've been introduced to the wide, wide, wonderful world of 5 digit NACA foils. A decent summary is found here: http://www.vacantisw.com/foildesign.htm From what I can tell, a lot of Graham's CB designs are close to those 63 series foils. High speed.....low drag. A common theme found around these parts. Quote Link to comment Share on other sites More sharing options...

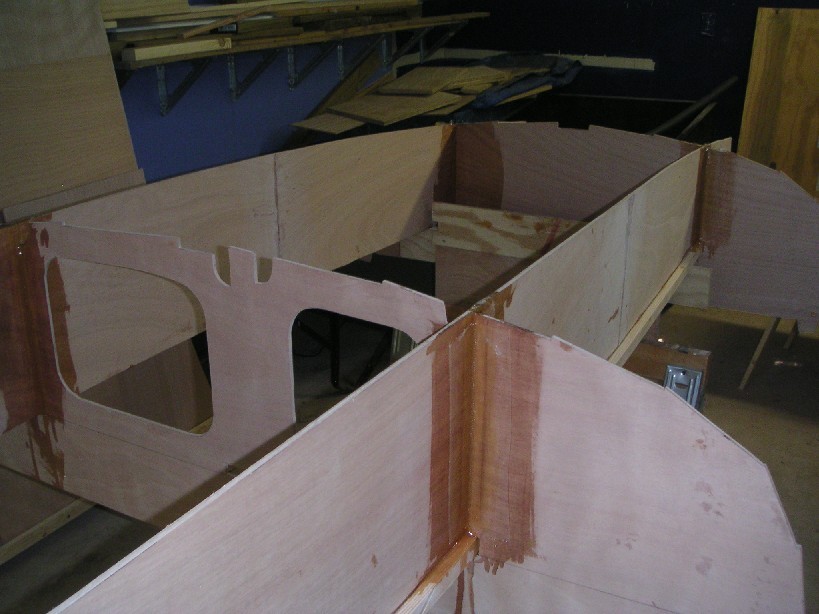

John Turpin Posted September 7, 2009 Author Report Share Posted September 7, 2009 More progress. I've spent lots of time building and shaping beams. The transom is drying in clamps now. Joints are also taped. Finally getting cloth on the centerboard. Details are here: http://www.tetra-sail.com/lapwing.htm Quote Link to comment Share on other sites More sharing options...
Travis Votaw Posted September 8, 2009 Report Share Posted September 8, 2009 Lookin' good! Quote Link to comment Share on other sites More sharing options...

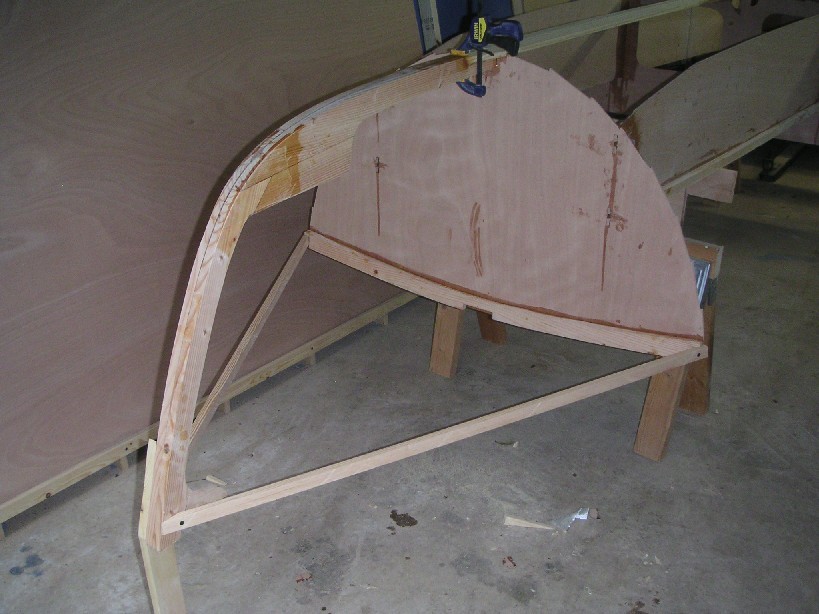

John Turpin Posted September 10, 2009 Author Report Share Posted September 10, 2009 The transom went on. Quote Link to comment Share on other sites More sharing options...
Richard Whitney CS#70 Posted September 12, 2009 Report Share Posted September 12, 2009 Looking good John - I am trying to work out the shape of the third strake this weekend. Quote Link to comment Share on other sites More sharing options...
John Turpin Posted September 13, 2009 Author Report Share Posted September 13, 2009 I am trying to work out the shape of the third strake this weekend. I'm very impressed. I wouldn't have a clue how to do that. Quote Link to comment Share on other sites More sharing options...
chuckpierce Posted September 16, 2009 Report Share Posted September 16, 2009 Very nice-looks like you have some good help as well! Quote Link to comment Share on other sites More sharing options...
John Turpin Posted September 16, 2009 Author Report Share Posted September 16, 2009 Hey Chuck! Finish that sofa table so you can get started on your Two Paw! Quote Link to comment Share on other sites More sharing options...

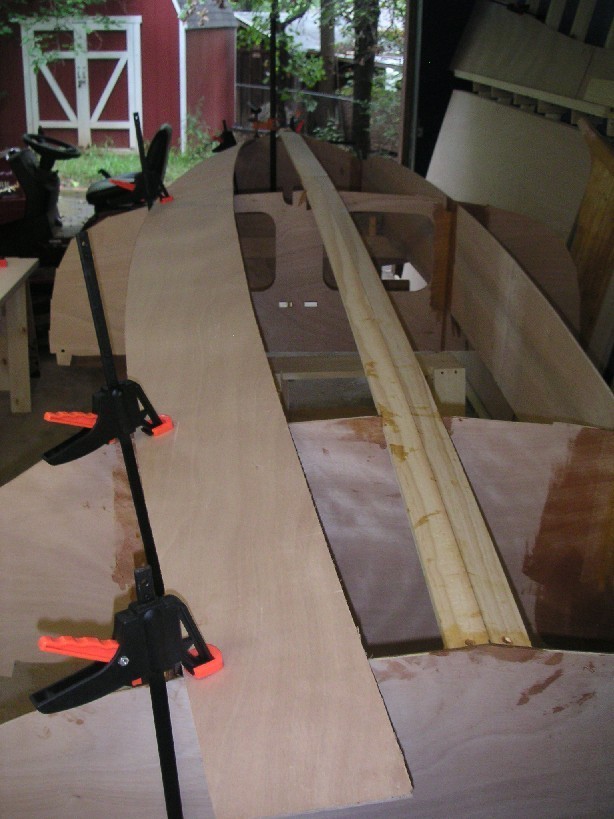

John Turpin Posted September 17, 2009 Author Report Share Posted September 17, 2009 First plank is cut and temporarily clamped in place. Quote Link to comment Share on other sites More sharing options...
Richard Whitney CS#70 Posted September 18, 2009 Report Share Posted September 18, 2009 Thats looking good John. Should be easy to get the shape of the garboard. I have to do some 'creative fitting' of the join between the garboard and 2nd strake at the stem - there is quite a bit of twist in the garboard. In the end it looks fine (unless someone turns the boat over and looks carefully) Quote Link to comment Share on other sites More sharing options...
John Turpin Posted September 22, 2009 Author Report Share Posted September 22, 2009 I'm going slowly with the planking and getting great help and advice from Richard W. When I get home from this business trip, I hope to get the first two (four) planks completed and in place. I'm blazing a new trail here and need to go slowly so I don't just ruin this expensive plywood. But, I did make some good progress on the rudder blade. I've also received my mast tubing, sail track and tiller stock. Quote Link to comment Share on other sites More sharing options...
