acreew

Thanks Paul! I will look into arabbet plane.

Progress on repairs... appreciate any thoughts/suggestions. any thoughts on how best to bring the deck edges fair with the rub rail precluding the use of a router? also..would appreciate tips on blending in paint over repairs thanks, will

The router worked great... So far so good.

Thank everyone for the replies. I will know more once I get some material removed...hopefully this weekend. From my initial inspection, it appears that the king plank is affected only forward of the hatch and before the stem. It appears that it broke at the points just before and after the doubler around the mast hole. I does appear that the mast came out partially as the middle of the mast tube was completely broken free of the rest. It is amazing to me how strong the mast step is.....for a period of at least 1.5 hours the hull had approx. 500 lbs of humans on it in 3-4 foot waves with the masts stuck on the bottom....not to mention what it went through with all of the drifting. Anyhow, thank you Graham and Tom for taking the time to help me address this. I was initially planning on wedging myself in the bow to do this piecemeal which was not going to be good for anybody (I account for half of the 500 lbs). The idea of the router is excellent and I am very happy that (in the absence of further damage) that I will be able to use butt blocks. BTW the bow is completely fine as far as I can tell. I will get my son in the hatch with a camera to get better pics of any further damage and will hopefully know more when I get some of the deck removed. Strangely, I am looking forward to the repair with the exception of the painting. Again... Thank you all very much...I will send more info as I get it. Will

The first 2 pics are from above the forward mast tube. the next 3 are the top of the mast tube torn away from the deck... Appears that the king plank snapped just forward and aft of the tube. Next is the remains of mast tube on the step (middle portion of the tube broke away. the last 2 pics are of the split decking on starboard bench at the back, i would appreciate any thoughts on making these repairs... Also there is a crack in the aft mast tube... Mot sure if this needs to be addressed. thank you for your thoughts will

Ok here we go, (cs17 339) on 2/25 my friend and I were returning from an overnight on shackleford to the oyster creek boat ramp .... winds increased to 20-30.... sailing downwind full sails..at oyster creek inlet (1.5 to 2 miles out). Was about to drop sails and motor in due to conditions but attempted a last tack. Did not uncleat mainsail and friend didn’t get to the line... immediate capsize... wave action drove masts down into bottom..swam to shore..,barely made it...BIG lesson. Coast guard notified ...tow boat contacted ... couldn’t find boat... search discontinued...2 days later contacted by someone checking their duck blinds who found the boat and towed it to their home approx 6 miles southeast of position on 2/25....boat retrieved this Saturday. boat in amazingly good shape. I need guidance in repairing the front and rear mast tubes and rear starboard seat. I will send pics and more detailed description when I have more time. obviously I got too far over my skis....I am very humbled and very thankful to have another chance with this wonderful boat. Until my mistake it performed flawlessly. Will

Thank you all for the nice comments. Thanks Graham and Chick for the invites. I will definitely take you up on it! Will

I live just west of Winston-Salem, NC, so....landlocked. Will sail in lakes for convenience....but looking forward to taking her to the pamlico river, sound, and brief ocean excursions hopefully.

Oh well... will try to download the launch later... launched in the rappahannock river in tappahannock, va where I grew up. Thanks again, Will

IMG_0490.mov IMG_0491.mov

Hello all, after 4-5 years... she's launched. Wonderful experience all the way around. I have never built anything other than crafts for my kids. Many thanks to this forum for all of the great support and advice. Thank you also to Graham, Carla, and Alan for the excellent plans/support. She sails even better than I hoped/imagined... just amazing! WooHoo! trouble downloading... will try again IMG_0490.mov IMG_0491.mov

Thanks par... you were right...much more dust than I thought despite the plastic tent....painted outside in nearly ideal conditions with much less of a problem. Some pics attached

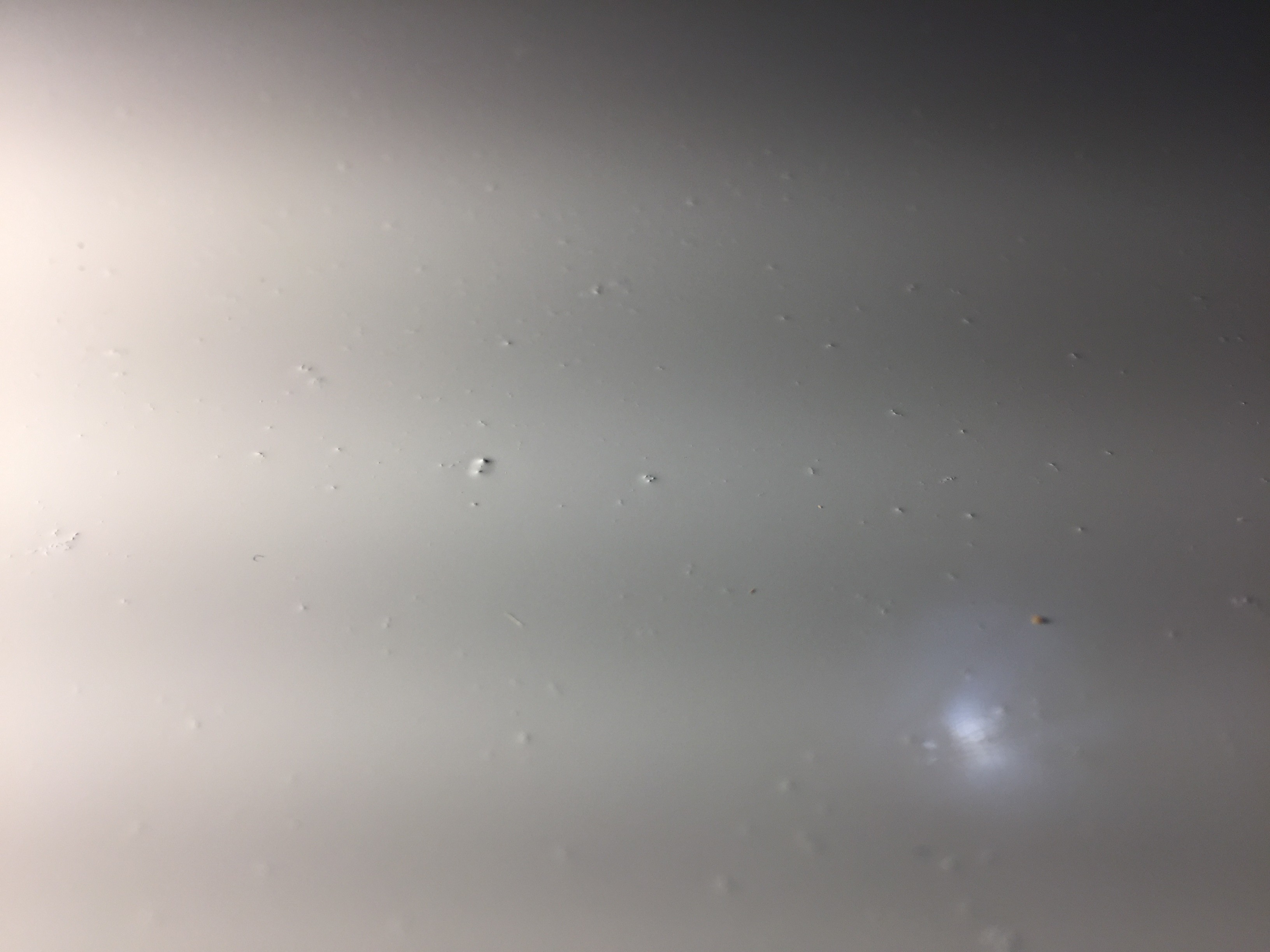

Primer was in place for several months....no air supply... in and out via a slit in the side( painted with supplied air)...of note.. initial topcoat done without the booth with same result... tipping brush = red tree 2" badger or Wooster yachtsman(didn't seem to matter) bumps are size size /consistency of dust specks but appear immediately after tipping. See attached picture....

Any advice greatly appreciated: painting awlgrip topcoat and keep getting bumps in the finish. Have minimized dust(boat is totally enclosed in plastic suspended from garage ceiling), varied reducer from 15-30%, used various rollers, cleaned tipping brushes, strained the paint, wiped surface with recommended solvents, tacked the surface, ....all to no avail. the bumps appear to be paint solids when I sand them out... awlgrip rep suggested painting outside. any other suggestions?

Thank you both for the responses!

Hello, Feeling my way through mast assembly with little knowledge of hardware: 1. What does the snotter attachment look like? How is it attached to the mast? 2. I have 2 metal S hooks (with one end closed) included in the mast/Sail hardware....what are these for? 3. For the blocks at the top of the masts...the top holes are to be attached with " 1" 10 PH screws"...does the 1" refer to the length of the screw? Also... assuming these are attached with nuts/lock washers? 4. One cam cleat has the keeper....which cam cleats go where? Thanks for any help, suggestions, pictures. More questions to follow I am sure. Will

Hello All, I am struggling with paint concerns....any and all opinions, suggestions, etc. would be greatly appreciated. (CS17 #339) Planned to paint entire boat with 545 followed by Awlgrip Snow White. After seeing the gloss of this paint (under forward seats etc. that have been painted) became concerned about glare. Now considering painting cockpit Ice Blue. Specific questions: 1) Should I be this concerned about glare....anyone run into this problem (glare) with their white paint on decks/cockpit? 2) If a less reflective paint is indicated...how should I do this? e.g., Should I just paint the cockpit the off color or the cockpit as well as the deck? Would a two tone boat look weird with only the rubrail separating the contrasting colors? Finally thoughts on painting cockpit blue, rest of boat white with large areas of nonskid on the deck painted blue? 3) Any other color suggestions/combinations that others have found particularly good looking? 4) Would a flattening agent work for this problem? Does a flattening agent affect the durability/ability to maintain the paint? thanks very much, Will

Thanks beacher.... good to know it worked out... thanks again for the fast response will

Thank everyone for the very detailed responses...got the centerline and will be painting the masts. Tonight got the idea to use epoxy thickened with micro balloons to fill in gap at joint of the mast around the entire circumference instead of using the fiberglass wedge. I have done only one joint and then began to have doubts.... is this a stupid thing to do.? Will the epoxy crack with movement of the mast? Any other reasons why this won't work? anyway... hoping for a reply tonight if I need to undo it.... thanks in advance. will

Hello All, Any pearls for finding the centerline of the mast (CS 17) for installing sail track. Also, any insights into sequence, process, pitfalls, etc. of attaching hardware on mast would be appreciated. Also any thoughts on painting vs. not painting. thank you very much, Will

Thanks Paul....Grinding it is then. I will do as you did. Thanks again. will

Thanks. I will first try the other end:)

Yes....the bottom is slightly bigger,but they do not fit. I had put on the bushings before attempting to fit them. Needed to grind the bushings off and in the process also sanded the 2nd mast section just to see if it would fit after with no luck.

Hello, The first and second sections of the mast are very close (ie, do not need bushings) and do not fit currently. Any suggestions on how to get these sections to fit without weakening the mast. Thank you, Will

Wish I could replicate the up/down haul...but she's already glued up. Thanks for the pictures. Looks awesome.
