Urgent Core Sound 20 question

[Charlie Jones]

Some how or another a critical measurement has become obliterated on my plans set and I need it today.

on the Hull Cutout Sheet, on the "bottom" part I need to know the measurment from baseline to chine measurment at the transom I can see on my plans that it's 2? and 7/8. What's the ? part 7? 9? ???

Cutting the bottom sheets today so I need this asap

Thanks guys.

[Charlie Jones]

Never mind. I scaled it- HAS to be 27 7/8ths

Thanks anyway.

[Gordy Hill]

Sure Charlie, any more questions just feel free. That's what we're here for.

[PeterP]

It is exactly that. Serious. PeterP

[Charlie Jones]

Thanks- and the batten verified it Hull sides and bottom, plus frames, all cut out- ready to put together.

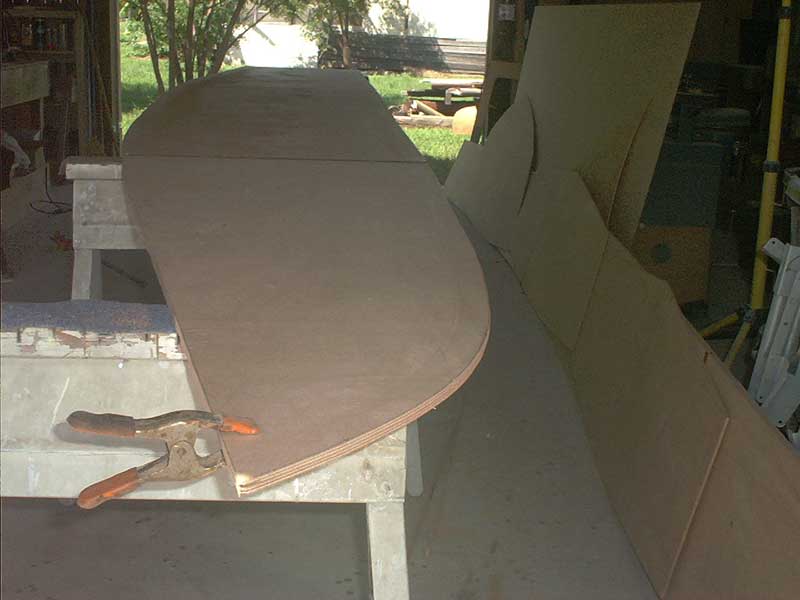

Here's the bottom panels, with the sides and frames laying alongside. We'll be glassing the sides to the bottoms tomorrow, then on Thursday maybe we can go 3 D

[JeffM]

Charlie, unless I'm missing something in your photo, the bottoms are uniform thickness. How are you going to make the bend in the foot if its 3/8 ply?

[Charlie Jones]

They aren't the same thickness. There is a section of 1/4 scarfed on the second piece. The flush part is face to face so we wouldn't have two exactly alike, which would NOT be cool
