New guy building two Ravenswoods


bagarre

Recommended Posts


More progress. Each knot seems to take about 4 to 5 minutes but I'm getting faster.

Found a use for my old sailing gloves. My skin does not stand up to the artificial sinew. Years of computer work has soften me.



It's 90 degrees outside and thunderstorms all weekend. I might have this tied up by Monday morning and ready for the next one.







Link to comment
Share on other sites

  • 2 weeks later...

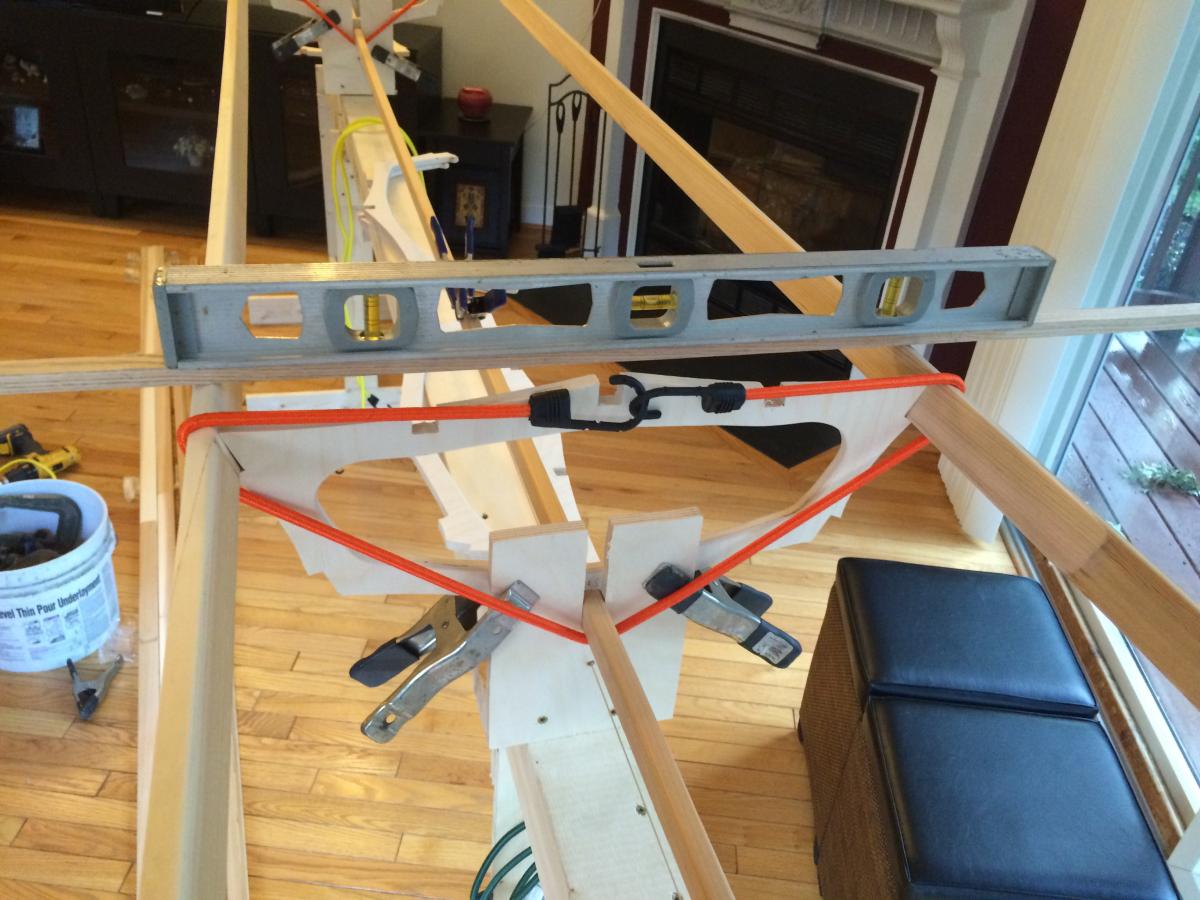

Second kayak is framed but we didn't get it outside for a frog.



I saw someone post shots of laminated rub rails for the bow and stern. Having some left over walnut and maple, I coudlnt resist.



I also found some nice #7 1" bronze screws with smaller finish heads to hold them on. Should look pretty and be functional.


Link to comment
Share on other sites



 I'm getting pretty good at scarfing :)

Nothing in any of these forum sections scares the people who have never done it more than scarf joints.  Well, that is until they do a few............



Very true - it was the one thing I worried about the most.

You think it needs to be some high precision woodworking thing but: Cut it - glue it - clamp it - sand it.



The jig on the table saw really simplified it but you could to the same with a hand saw, bench plane and a little elbow grease.

Link to comment
Share on other sites

  • 4 weeks later...

Can I ask how you covered the bow? Is it stretched so the only seam is on the deck, is it sewn up the curve from the waterline? Or is it cut and stapled on the curve up from the waterline? I can't find anywhere Jeff discusses this. Finally, once sewn up did you install some kind of rub rail, either brass or plastic? Thanks

,

Link to comment
Share on other sites

On the first boat, I couldnt figure out how to pull the fabric up to make the bow really neat and clean.

So, first boat I sewed the curve.



On the second boat I figured it out and was able to do the Bow with no seam. BUT when I tried to do it on the stern it didnt work out quite well. So, seam it was.



I made up some maple and walnut rub rails for them that I plan to install with a few #6 screws. I still need to work that out.

Link to comment
Share on other sites

Deck rigging done on boat #2.

The leather is 1/4" but I think it's a bit too thin. We'll find out the first time I need to use it :)

Side lines and grab handles are a continuous piece of para-cord stuff. Being that long, it has a fair amount of stretch but not so much to not be usable as a safety line.

Loops thru the deck line holes hold the safety line in place.

I'm pretty happy with everything - so long as the leather holds up.










Link to comment
Share on other sites

I like the color of your hull. I tried something like that at first, using spirit line's rare earth pigments, but I have no clue on how to mix colors. I ended up with a couple quarts of purplish, brownish unusable varnish taking up space.



Regarding your perimeter lines, you'll find that as soon as your paracord gets wet, it will stretch like crazy. Nylon absorbs water and softens. I tried nylon paracord on my pygmy and was surprised at how much it sagged when I got it in the water. I switched to poly line and it holds up well. I used this one from Amazon, but you might not want the reflective yarn in it.



https://www.amazon.com/Shine-Line-Reflective-Cord-16/dp/B00TIMTIFE/ref=cm_cr_arp_d_product_top?ie=UTF8
