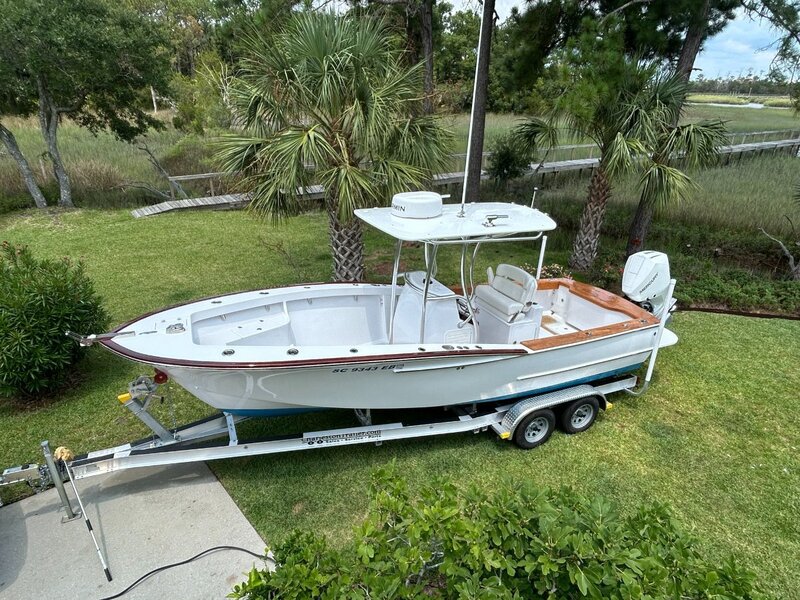

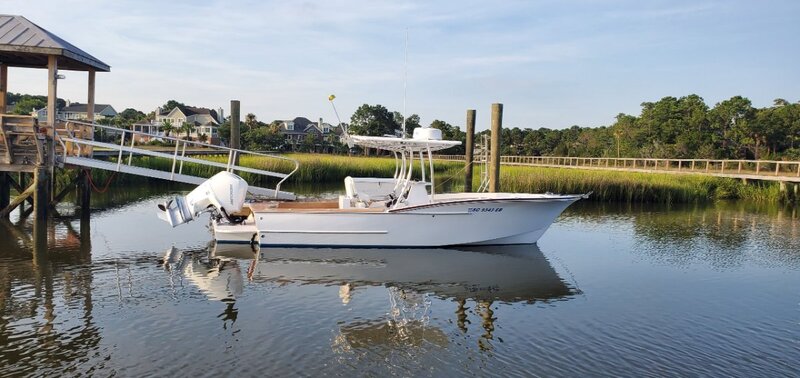

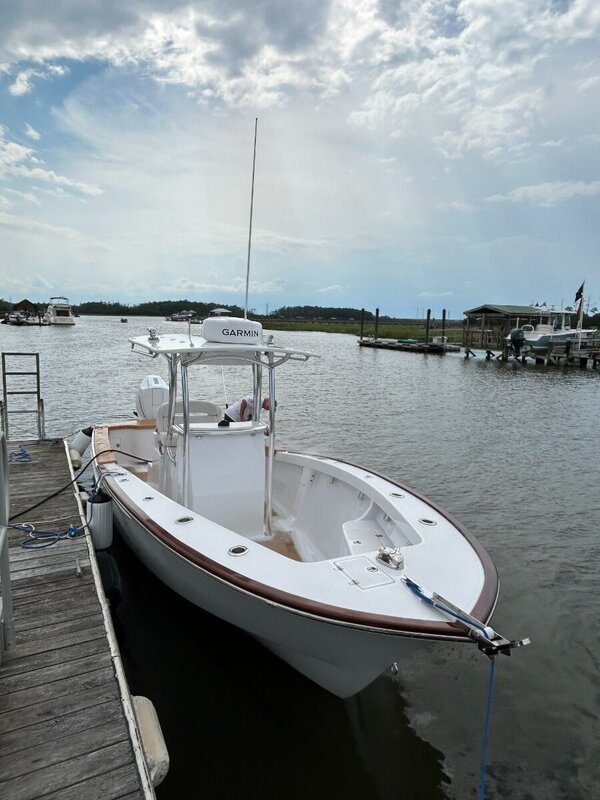

Ocracoke 24, Lucky#13

Recommended Posts

Adios    0

Hello all.



I am new to this forum but not to boatbuilding. Last february I ordered plans for the Ocracoke 24 and began cutting out parts for the project in May. Things are starting to take shape so I thought that I should share my experience so far. I followed Miyot's building of the same boat with interest. He did a great job and his dedication to posting photos was very helpful. Thanks!



I live in Charleston, SC where there is great inshore and near shore fishing and lots of coastal barrier islands and waterways to explore. The harbor can get quite choppy and the harbor entrance is notorious for being like a big washing machine. I think that this design, with lots of bow flare, should be just the thing for getting out there without getting too wet. I've had bigger boats for that purpose but am tired of the expense and maintenance and want something trailerable.



I'm using douglas fir for the keel and stringers, okoume ply for the planking. I plan the full transom version with a 200 Yamaha on a bracket. I will stick as closely to Graham's plans as possible and discuss changes with him. He has already given me advice on reinforcing the transom to support a bracket.  Suggestions from members would be appreciated.



Like many of you, I have a real job that gets in the way of fun stuff like boat building but hopefully by this time next summer...



Here goes, if I can figure out how to post pictures.



Shown is the starting point...a pile of wood.



Thanks,



John McFadden

Charleston, SC
