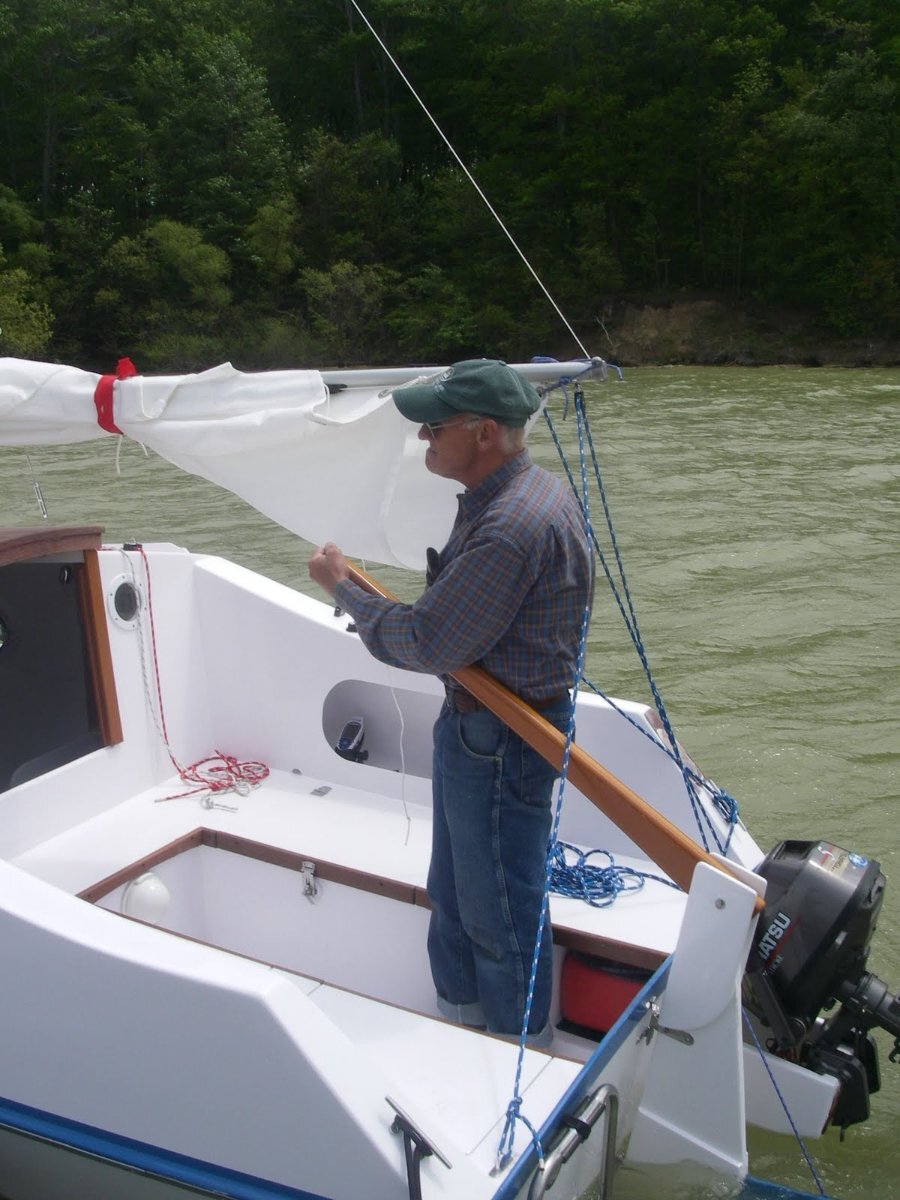

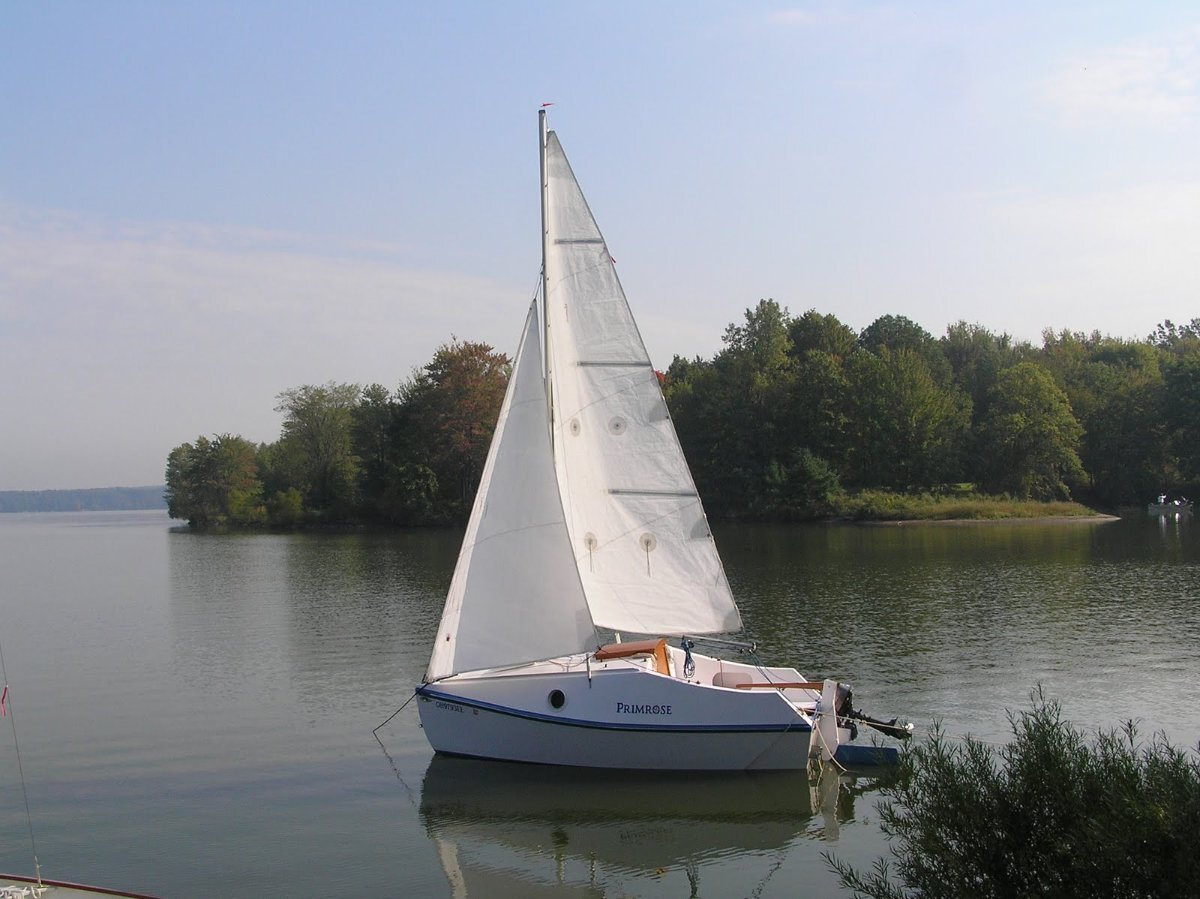

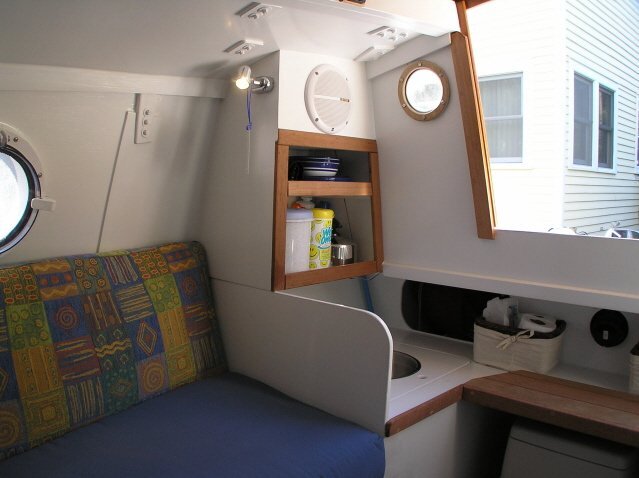

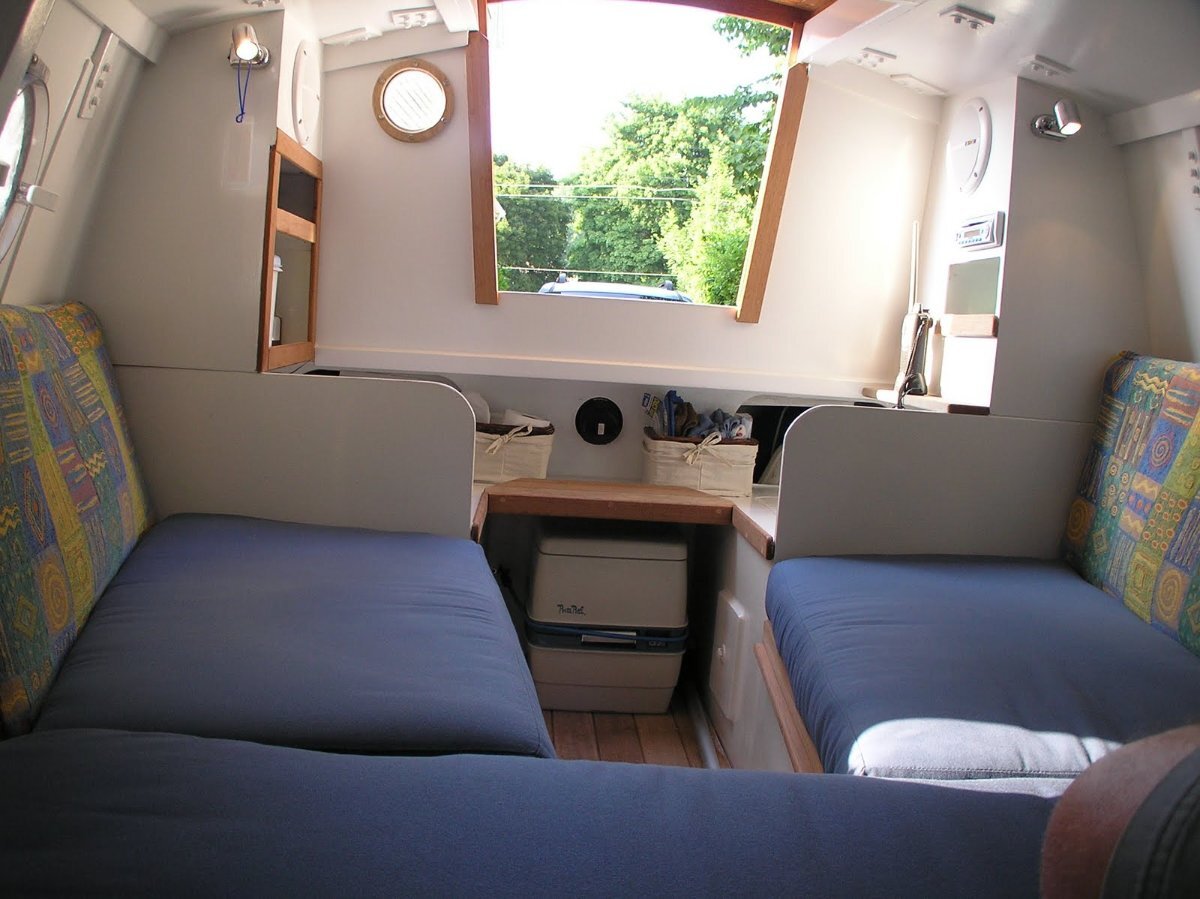

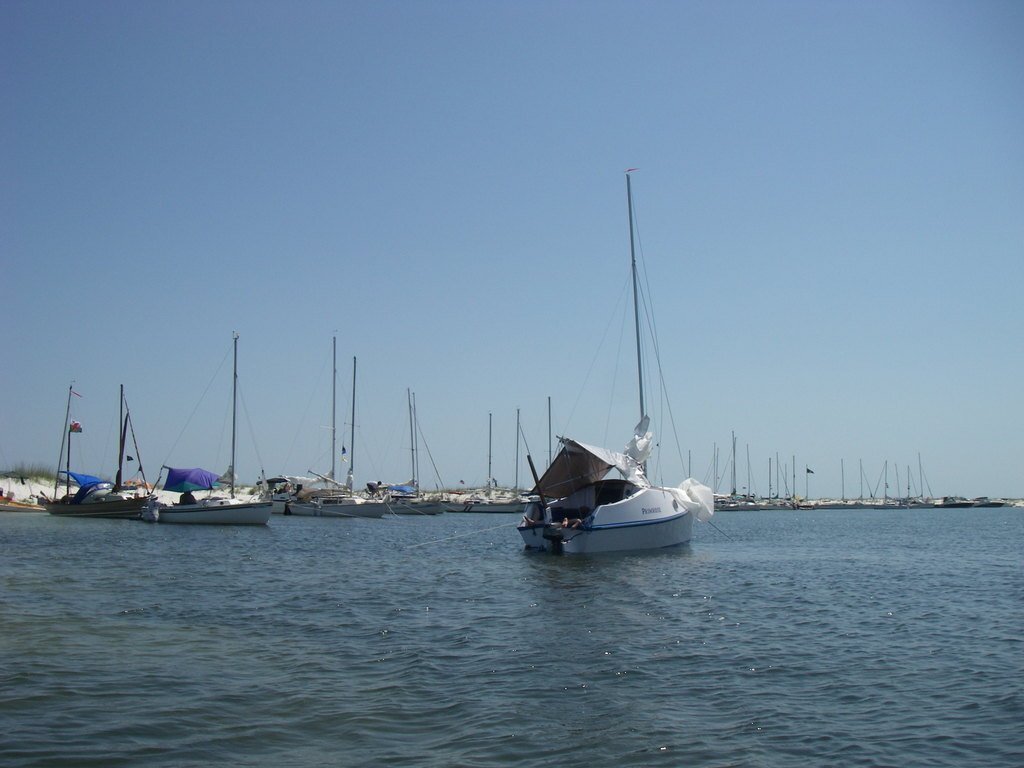

  1. "Primrose" my No Frills 15 has not been seeing the time on the water she deserves since I launched my Core Sound 17. She was very solidly built by me a professional remodeling carpenter and was around boat number 8 or 9 that I have built over the years as an amateur boatbuilder. Boats built include a Vacationer, Core Sound 17, multiple skin on frame kayaks, a mirror dinghy from a 30 year old kit, 6 hour canoe and others. All meranti ply and 10oz cloth hull. Sails look brand new, hull needs a touch up but in excellent condition, interior upholstery is in great shape. Sleeps two, very sea worthy, sailed on Lake Erie and trailered down to FL for two BEER cruises. I will include pictures taken this past fall before she was covered for the winter (appears there was wash water on my camera lens in case your are wondering about the distorted bits). I will also include a link to the orginal building pic album. The core sound is my go to and I am currently building out a camper van so she has to go. Feel free to contact me for additional details. She is in the 44134 zip code for anyone googling location. No Frills 15 build Thanks for looking, Jim
  2. DOH, that is way I post here, it is always good to have a fresh prospective. I was so fixated on raising the mast I hadn't gotten to taking it back down again, that is very accurate that once the mast leaves the tube when taking down it can be unwieldy. I have been swayed that the knuckle idea should be abandoned. I guess it was a knuckle headed idea. Thanks, Jim
  3. Thanks for the input, the thought was to use the knuckle to start the mast into the tube and then guide it down as you lift, so that the hinge would be contained in the lower mast tube when the mast is fully raised. I agree that there would be no way to use it as a tabernacle without a stayed mast. Thanks Jim
  4. Thanks for the all the great info Scott, What are the rules for camping onboard, can you suggest a couple of favorite anchorages . Thanks, Jim
  5. Thanks for the kind words and I will pass everyone's well wishes to Meg. Here in Ohio I had to register the actual trailer (Northern Tool knock down trailer kit) and get a plate for it but they don't really care about what is on top of it. Meg is 25 now, she has been a shop rat all of her life and I miss having her company since she has been on the road the last couple of years.
  6. I included a picture of this in my KY lake topic, Oyster asked for more info so I figured I would start a separate post. Attached is a link to the build album. Self designed 8ft long and 5ft wide. Built with and for my youngest daughter who is a traveling nurse who loves to see what our country has to offer. Thanks, Jim teardrop build
  7. Getting some cabin fever. My construction job suddenly shut down several weeks ago and selling residential remodels in this climate is less than fruitful. I've been to BEER cruise twice and FL 120 once and toyed with the idea of running down to FL for the 120 coming up soon but have decided the distance from Cleveland is more than I want to deal with right now. I'm considering Kentucky Lake which looks to be under 600 miles from home and the current weather certainly beats Cleveland's 40's and never ending rain. Been making some minor repairs and touching up paint on the CS17 so I'm all dressed up with no place to go. That being said any info on KY lake sailing would be appreciated. Looks like the lake is open for business. Cant seem to find rules regarding primitive camping or boat camping. Any favorite areas to hit, any areas to avoid. Thinking of heading down the week of the 18th. My 35th wedding anniversary is the 17th so I'm guessing I should be home for that, although I've never been good at judging those kind of things .? In case any one is interested this was my latest project built for my wandering daughter . Thanks, Jim
  8. Thanks, all great info. I did not realize that you had a cabin and needed the additional hieght. I will have to go back and look at some of your previous post to look at your cabin details, the wheels are always turning ?. Thanks, Jim
  9. Thanks for sharing your design. I like it. Two questions 1. is there a stop to keep the mast from passing through the bottom of your PVC tube before the mast is more or less vertical and ready to drop into the mast tube? Do you regulate the depth manually to keep the mast from contacting the deck? 2. In hind site do you think the tabernacle could have been scaled down or are you finding the forces involved warrant the scale. I ask this question with all due respect. Thanks, Jim
  10. This what I did on my CS 17. Picture album linked here. Used a dinghy bimini from Amazon for the roof and frame and sewed up the rest. Hope that helps some. https://photos.app.goo.gl/xUDeTs9iQJnWHaccA Jim
  11. Thanks for the replies. Pete your pics are similar to where we started and may end up. In the concept picture in my post there would be no need for the lock pin as the whole assembly would drop into the mast tube and be captured in an upright position. The pictured application from my orginal post looks like it was a deck step with out the support of the mast tube. If applied to my application I do have a concern about the compression forces on the pivot of the knuckle, it would have to pretty robust to stand up the force applied by sailing with out distorting the knuckle. Paul is right that I ended my tube at the deck years ago. Jim
  12. Hello All, Its been a couple of years since I checked in. This will be the my 9th season with my CS and I am thinking about an easier way to step the mast (more the main and not as much the mizzen). Lifting the mast strait up and dropping it into the step while standing on the fore deck becomes less safe each year and I am not interested in modifying the fore deck and installing a well with a pivoting tabernacle. In years past I have seen some of the deck mounted guides and was kicking that idea around when my very creative boat building buddy had this idea, he didn't have all of the details in his head but when searching the web we stumbled across this picture on Russ Livingstone's web site. All though not exactly what we need the concept is there. A small knuckle at the bottom of the mast to catch the top of mast tube and guide the mast into the tube as it is being pivoted/lifted and would drop into the mast tube. Any thoughts on the idea would be greatly appreciated. As always thanks in advance for your help.
  13. couple of shots of the new camper on FL 120
  14. Just back from the FL120 here is my rig ready to hit the road last week. Crutches at main and mizzen mast steps and a gudgeon mounted crutch on the transom. I wrap my sails around the mast leaving all halyards in place ( my sail battens are vertical instead of traditional horz, just enough to keep the roach open in light air). Canvas sleeves are pulled over mast to keep sails clean and lines contained. Mast are laid in crutches and sprits laid on top and bungee corded at each crutch. Boat is held to trailer with 2*4 cross bars that extend far enough beyond the hull to keep ratchets and straps from touching the hull. Normally I only use the aft cross bar unless traveling long distances or carrying kayaks on top.
  15. Flaps on the deck should keep most critters out on the top side, anything that crawls or flies under the thwart will be able to enter via the gaps in the sleeping deck. The gaps are relatively tight, just enough for drainage, so it is my hope that a sleeping pad on the sleeping boards and the small access will be enough. I suppose some no see um mesh could be added to the bottom of the sleeping boards if it proves to be a problem. Thank you to everyone for your kind words and encouragement. Jim
  16. Slow and steady maybe I will get the job done. Wow this is tougher than building the boat. Todays progress. The old man that taught me to sail always laughs that my anchors are bigger than needed. We shall see now with all of that windage. Aft curtain with doors and window. Thanks, Jim
  17. Got around to some new pics. All panels will have a corner zip so that each wall can be rolled out of the way. Walls are sewn to the top via the skirt that was added at the start. Forward wall mostly complete, needs screen. Sidewalls about 30% complete. Need small fixed windows to check surroundings at night. Need snap rail and aft corner zip. Enjoy, I am always open to constructive advise, screwing up so that you dont have to Thanks, Jim
  18. Probably will not make any progress again until the weekend, check back sunday and I should have pics of the progress on the forward enclosure. I am trying to have this ready for the FL 120 so I will need to plug along pretty quickly. Thanks for your interest, Jim
  19. With the seat boards in and the bimini camper up the forward cockpit should be cozy and dry. I am assuming there will be water in the bilge if it rains but I will be elevated high and dry on the seat boards. My concept was for the aft cockpit cover to be the porch and the camper to be the living space. I will just velcro the sunshade around the mast and not worry about water in the aft cockpit as I have already conceded defeat and will not be disappointed . Jim
  20. There is the telescoping pole just in front of the lazaret, which is the only structure in the shade pushing up. Just aft of the adjustable pole the canopy actually drops towards the rudder head giving protection from the sun as it drops closer to to the horizon. Yes the forward end attaches to the mast. Hope that helps. If the sun ever comes out I will roll the trailer out and get some better pictures. Jim
  21. Hey Don, I used 5/16 fiberglass. I had some 3/8 left from a repair but that was to stiff, I broke a ferrule trying to get the bend I wanted. The 5/16" seems to be just about right. Jim
  22. Sun shade progress This is what I would consider a picnic canopy or hanging out at the anchorage sun shade. Certainly not to be used underway. Still working out lines and misc. shown below is a pic with it at rest for overhead sun and then another pic with it under tension for side shade, you can almost pull it to the deck if needed. The loose flap forward was left to go around the mast and eventually attached to the camper to fill in the void between the camper and the mast where I am sure 90% of the sun will fall in a strip across my napping face.
  23. I thought that I would start a new thread on my camper top build. I started with an inexpensive bimini from Amazon. https://www.amazon.com/Oceansouth-Bimini-Available-Three-Different/dp/B013ASEG9E/ref=sr_1_1?srs=8055815011&ie=UTF8&qid=1491246347&sr=8-1&keywords=2+bow+bimini I have the Bimini installed backwards (on purpose) so that it folds forward. The secondary leg was shortened by about 10 inches as the frame is not centered fore and aft in the forward cockpit. I did not center the frame as I wanted to repurpose the forward oarlocks for the deck hinge. The removable deck hinge is screwed to a riser block. The block has a carriage bolt dropped through the center of it and is wing nutted under the deck. This is kind of cool as the bolt acts as a pivot point for the hinge and gives you the ability to accommodate some twist for alignment. The grey fabric hanging from the blue top (this bimini only comes in blue) is an apron piece that I am sewing to the top for attachment of the side wall curtains. The corners are not completed in the picture and were a major undertaking as you have to be able to sew in 3d, if you follow my lead on this project you will need the help of a very good friend as this can get a little frustrating and intense. They are currently finished and I will have to get some pics posted. So far so good I will keep you posted. I also just completed a sun shade for the aft cockpit and will post some pics, that is a more floating assembly and more of a fly. The above bimini would probably work in the aft cockpit if you don't mind all of the addition hardware but it would fit. More progress pics as they come available. Thanks, Jim
  24. Hello Dale, Thanks for the response, no need for a PM, just had seen that you hadn't posted in awhile and wanted to get your attention. I will be visiting Fl this year for the FL 120, I will be making up a cockpit tent and have been struggling with a design. I think about moving the mast to the third mast step (for nights) and going full cockpit with it or possibly stopping at the thwart with a half deal similar to yours.I am leaning toward your design (and not fight the mast) and then possibly adding just a sun shade aft to create cover but not an enclosed space. The only feedback that I have seen from you regarding yours was that you thought it too tall. Any thoughts and advice would be greatly appreciated and as always pics rule. I am curious as to your method of connection to the hull and how you dealt with the fact that the cover does not waterproof/bug proof the entire cockpit. Did you install screening below the thwart and dams on the seat to keep water from rolling under your cover. Sorry to have stalked you and I look forward to your advise, Lively has been an inspiration over the years. Good luck in this new phase of your life, I've been married for over thirty years and can imagine your change (for good or bad) has been a challenge. Thanks, Jim
×
×
